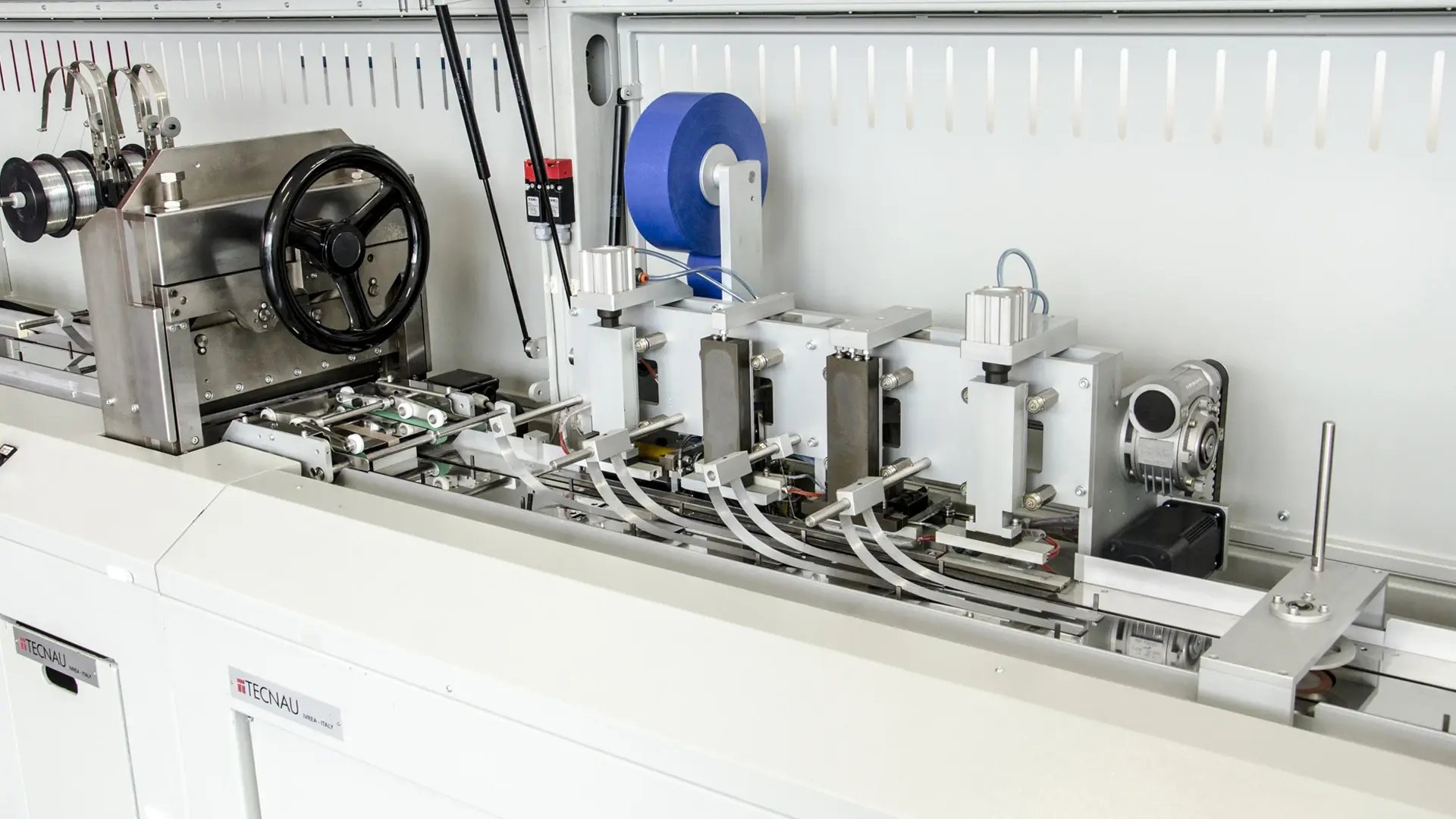

• BMS 400 Booklet Assembling System

    Binding


    Booklet Creation Made Easy

    BMS 100, 200 and 400

Stack_5x50_3D_001_Web-1600x950_crop

Powerful bookmaking systems BMS 100, 200 and 400 are able to automatically cut, match, collate, stitch and spine hot melt personalized booklets, checkbooks, restaurant ticket books, prescription books and more.

Key Benefits

  • Fully automated booklet assembling system and secure environment for any type of booklet

  • From cut-sheet or continuous forms

  • Up to 2000 booklets/hour

  • Book thickness up to 15 mm (0.6”)

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


— Brett Keene, CEO, Suttle-Straus

Read the Case Study

A truly customized solution—choose from multiple infeeds, stitching unit, tape binding, booklet stacking and wrapping station.

The Book Making System is an high-performance cutter with OMR, Bar Code or D-Matrix Readers. It’s equipped with a side trimming unit, a central knife cartridge, a guillotine cutter and with two stitching heads adjust automatically at booklet thickness.

Tecnau software controls the correct sequence and composition of the booklet, ensuring the integrity of the booklets assembled and avoiding human errors during the production process.

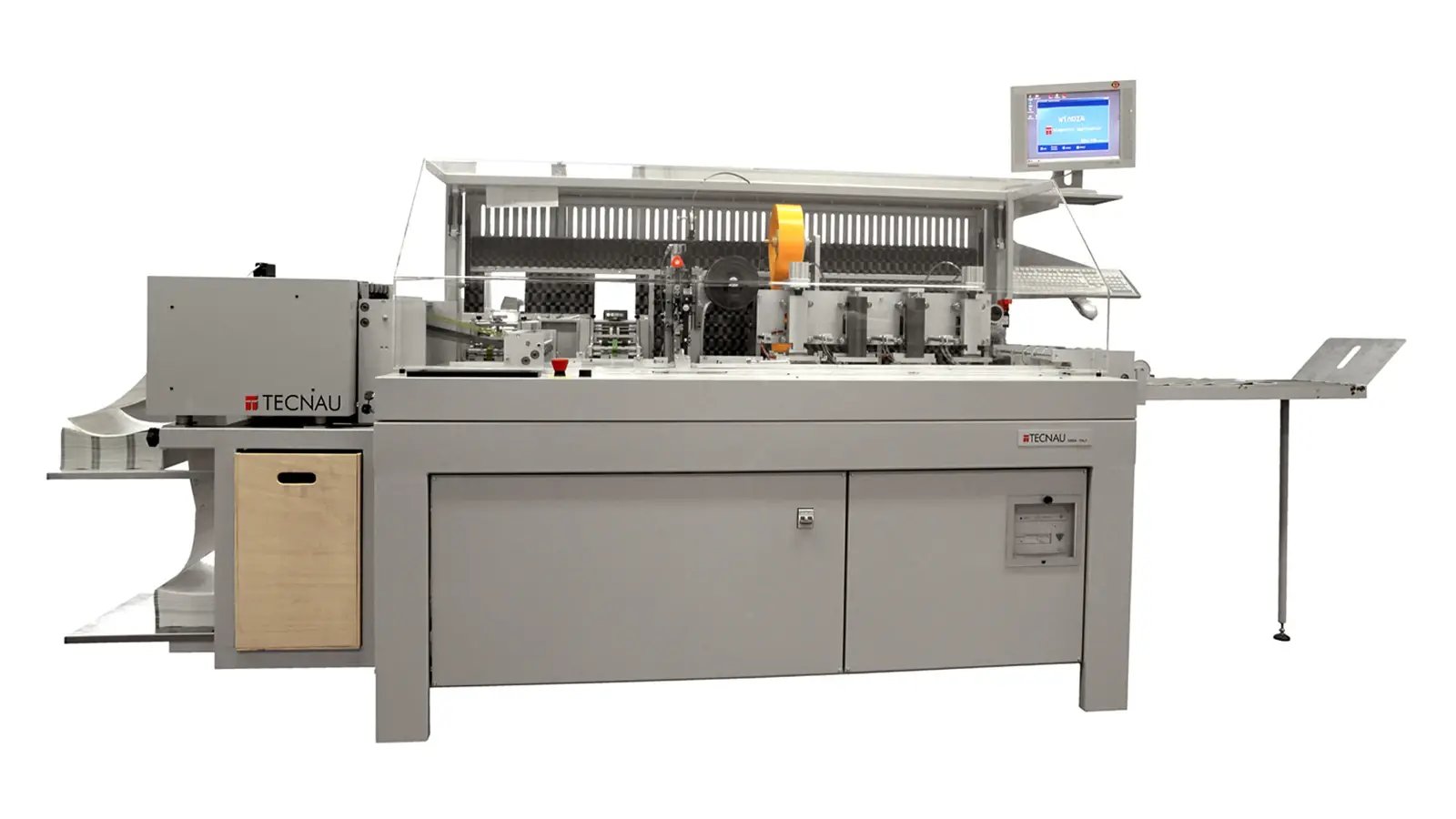

BMS 200 Book Making System

Technical Specifications

Specifications
Productivity From 1000 to 2000 booklets/hour, with 25 sheets
Feeding Cut sheet, Pinfed, Pinless
Paper weight 70 – 100 gsm
Cover weight 120 – 250 gsm
Web width 102 – 508 mm ≈ 4" – 20"
Form length 72 – 152 mm ≈ 2" 5/6 – 6"
Form width 140 – 230 mm ≈ 5" 1/2 – 9"
Strip cut Programmable or fixed
Edge trimming 3 – 35 mm / 1/8 – 1 1/3 in
Imposition 1-up, 2-up from continuous module, 3-up, 4-up from cut sheet

Options

BMS 100

  • 1-up printing mode
  • One or two webs cutter
  • Staples or eyelets
  • Hot melt tape

BMS 200

  • 2-up printing mode, parallel (P) or slalom (S)
  • One or two webs cutter
  • Staples or eyelets
  • Slalom (S) or parallel (P) mode
  • Hot melt tape

BMS 400

  • 3-up or 4-up printing mode on A4 (8.5 x 11) sheets
  • One web cutter or cut sheet feeder
  • Staples or eyelets
  • Guillotine blade cartridge
  • Hot melt tape

Product Documentation

 Stack 5151 / Stack 5251 Brochure A4

Download PDF

 Stack 5151 / Stack 5251 Brochure US

Download PDF

Product Documentation

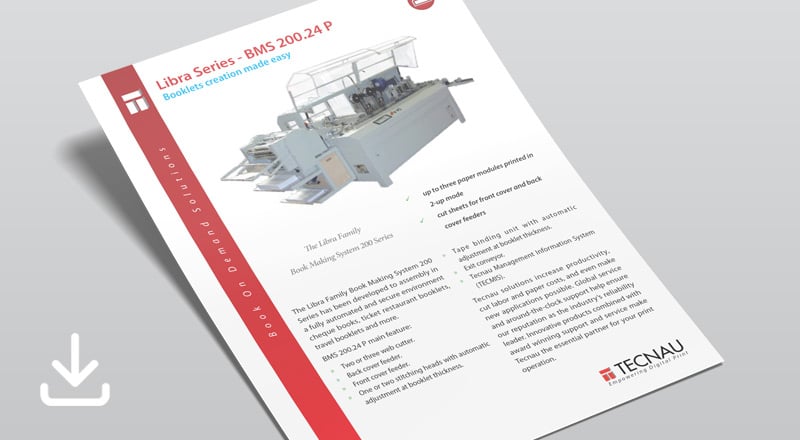

BMS 200 24P brochure

BMS 200 24P Brochure

Download Brochure

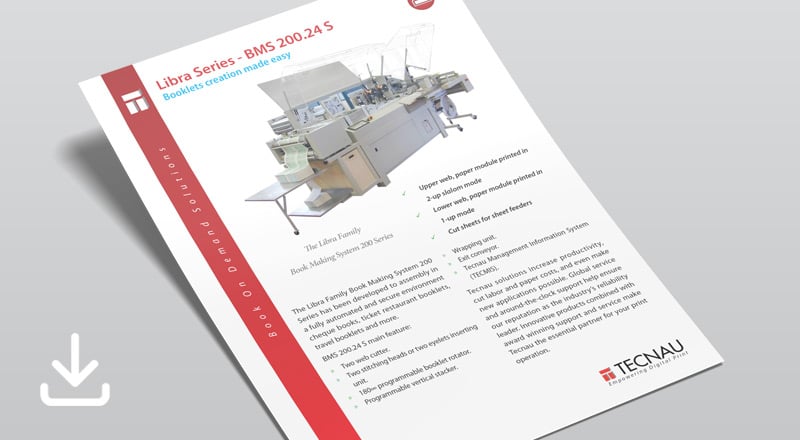

BMS 200 24S brochure

BMS 200 24S Brochure

Download Brochure

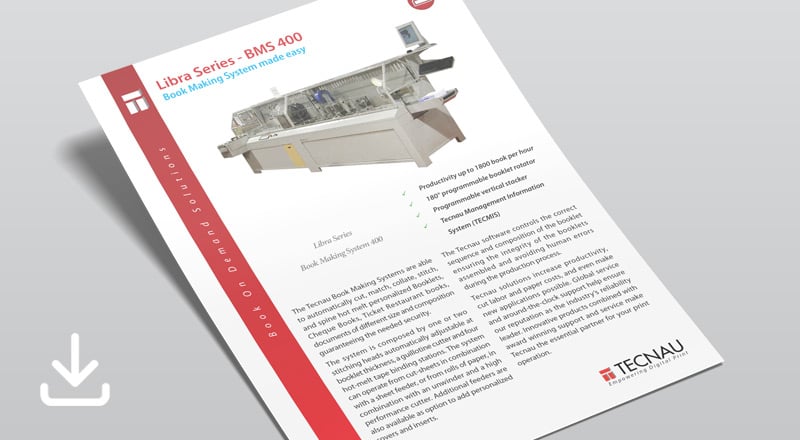

BMS 400 brochure
