BookReady Automated Book-Block Solution

Tecnau’s BookReady reduces manual print handling and consolidates labor-intensive finishing operations in an in-line automated process.

BookReady slits, cuts, and stacks output, allowing users to process sheets in cost-effective multiple-up impositions. Add SheetFeeder VP 6000 roll feed system for significant costs savings on paper, by producing odd-sized sheets from rolls.

Integration with Canon’s PRISMAsync software on the varioPRINT 6000 series allows job set-up information to be sent directly to BookReady from the press, for automatic positioning of alignment table & knives. Optional Tecnau Connect software control package keeps track of all processed sheets and reports missing pages from each job to control re-prints and complete customers’ orders.

Specifications
Paper weight	70 – 250 gsm, 45# text – 93# cover
Input width	279 – 356 mm, 11" – 14"
Input length	254 – 508 mm, 10" – 20"
Output length	317.5 mm, 12.5" max
Output min. (WxL)	1-up: 297 – 127 mm, 11” – 5”; 2-up: 140 – 127 mm, 5.5” – 5”
Cross cuts	Single cross cut and single slit
Stack height	250 mm ≈ 10" ≈ 2000 sheets
Offset	15 mm ≈ 0.6"

TC 1530 C

Create horizontal & vertical dynamic perforations for remittance stubs, coupons & tear-out pages. The TC 1530 C dynamic perforating module may also provide dynamic cross scoring and vertical creasing capabilities for easy folding.

TC 1530 P

Add the TC 1530 P for spiral/coil bind punching or dynamic ring-binder punching to facilitate a variety of binding methods.

Tecnau Connect

This software control package keeps track of all processed sheets and reports missing pages from each job to control re-prints and complete customers’ orders.

Sheet Rotator

The rotator option allows two-up smaller books to be run with cost-effective longedge leading before being rotated for book of one production.

SheetFeeder VP 6000

Produce non-commodity sheets with trim from rolls for significant cost savings.

Automated Book Block Production

BookReady

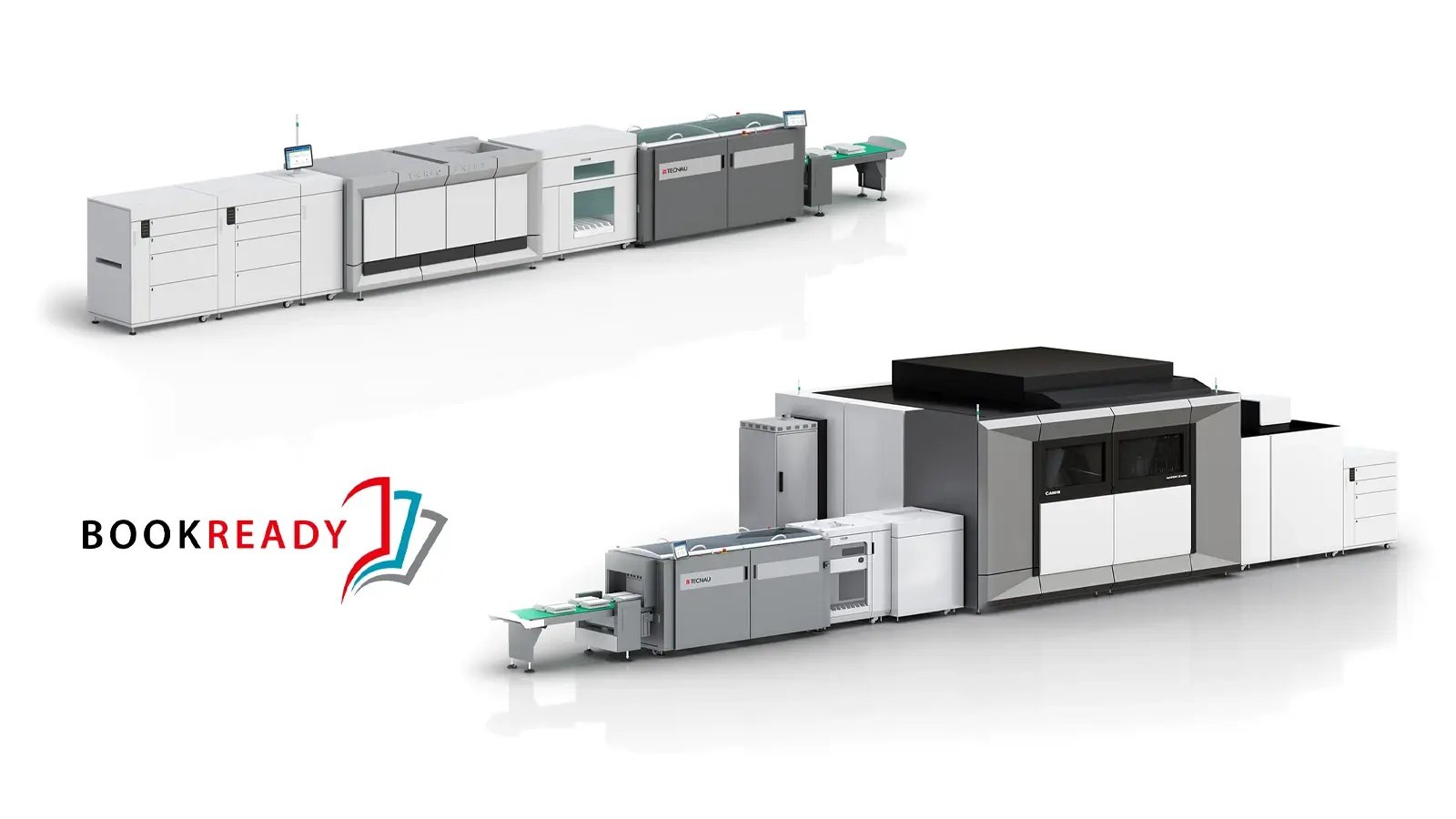

BookReady is the completely automated book-block system inline to Canon varioPRINT 6000 series TITAN or Canon varioPRINT iX-series presses.

Key Benefits

Featured Products

Convert multi-up book impositions from your Canon cutsheet digital production printer into smaller, stacked finished pages without operator intervention.

Technical Specifications

Modular System Options

TC 1530 C

TC 1530 P

Tecnau Connect

Sheet Rotator

SheetFeeder VP 6000

Product Documentation

Stack 5151 / Stack 5251 Brochure A4

Stack 5151 / Stack 5251 Brochure US

Product Documentation

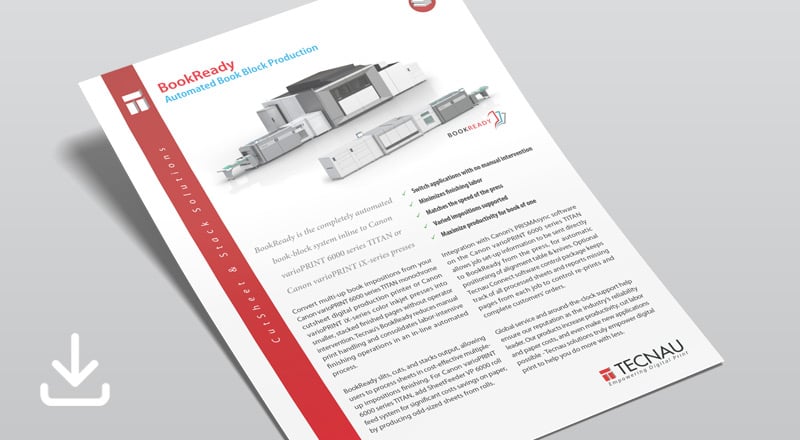

BookReady Brochure

Applications

Book On Demand

Request a Demo
