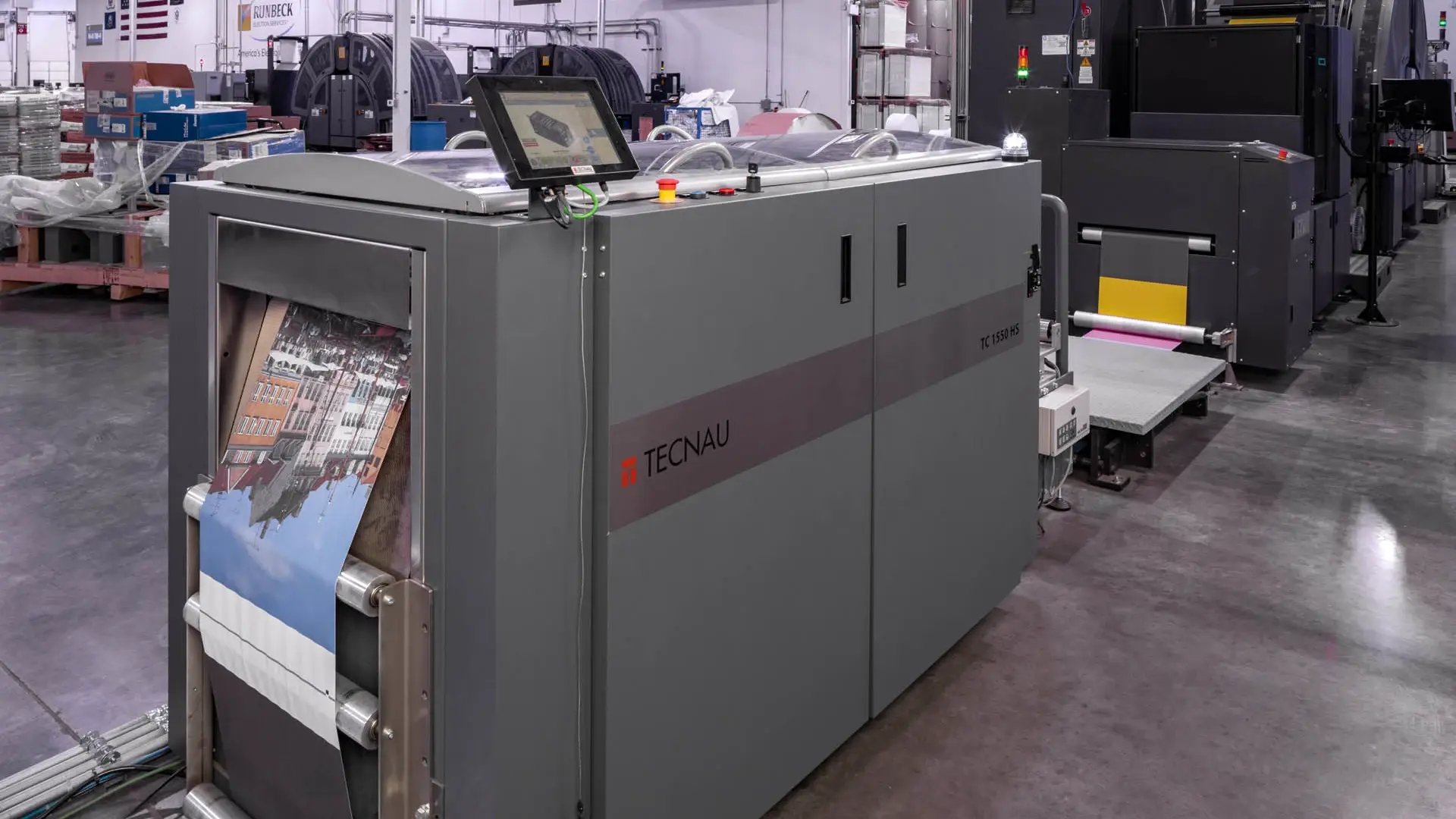

Dynamic Processor TC 1550 HS

The TC 1550 HS processor creates on-demand horizontal and vertical perforations, and offers options for static pinfeed punching or dynamic file hole punching, yielding user-friendly documents for your customer and application flexibility for you.

The HS series features an optional Performance Package upgrade with two perforation blades per shaft (field-upgradable), nearly cutting in half the minimum horizontal perforation repeat available at a given speed. A 2D Datamatrix, barcode or OMR code on each page triggers one of up to 89 pre-programmed perforation patterns page-by-page within your job.

Choose from dynamic perforation models with two, four or six horizontal and vertical perforation devices to best match your needs. Dedicated horizontal scoring and vertical creasing stations may be added to perf stations, further supplementing your processing options. The TC 1550 HS features automatic page length detection and automatic synchronization after blank paper. Optional tensioner or detensioner modules to match your printer operation are available on-board for reduced footprint. Expandable models are also available with free space for future in-field upgrades.

Specifications
Dynamic devices	2, 4 or 6 cross half web cylinders for 2-up applications for perf./scoring; 2, 4 or 6 independent vertical knives for perf./creasing
Blades per cylinder	1 blade per cylinder as a standard (field upgradable), 2 blades per cylinder with the optional Performance Package
Punch hole pattern	Dynamic 2-, 3-, 4-holes or tractor hole punching or round corner & 45° die cut
Punching app	Punch patterns are form specific; other patterns are available upon request
Punch hole diameter	3 – 8 mm ≈ 0.1” – 0.3”
Speed max.	Punching: up to 160 m/min ≈ up to 525 ft/min (Punching over 425 fpm requires application review.); Tractor Punching: up to 240 m/min ≈ up to 800 ft/min; Perforating: up to 240 m/min ≈ up to 800 ft/min
Perf. distance	Depending on model configuration
Paper weight	40 – 250 gsm ≈ 10.67# Bond – 10 Point (paper weight may vary depending on the application selected)
Web width	4” – 23” = 102 – 584 mm
Form length	102 – 812 mm & up to 2235 mm as a special ≈ 4” – 32” & up to 88” as a special

TC 1550 HS 1

STANDARD:

2 vertical perforation knives on 1 shaft
2 dynamic cross perforation half web cylinders for 2-up production

OPTIONAL:

4 additional knives on 2 shafts for a total of 6 independently positionable knives. Creasing knives are available also.
Tensioner
Detensioner

Advanced modules also available.

TC 1550 HS 2

STANDARD:

4 vertical perforation knives on 2 shafts
4 dynamic cross perforation half web cylinders for 2-up production

OPTIONAL:

2 additional knives on 1 shaft for a total of 6 independently positionable
knives. Creasing knives are available also.
Tensioner
Detensioner

Advanced modules also available.

TC 1550 HS 3

STANDARD:

4 vertical perforation knives on 2 shafts
6 dynamic cross perforation half web cylinders for 2-up production

OPTIONAL:

2 additional knives on 1 shaft for a total of 6 independently positionable
knives. Creasing knives are available also.
Tensioner
Detensioner

Advanced modules also available.

Perforate, punch & score where you want, when you want
