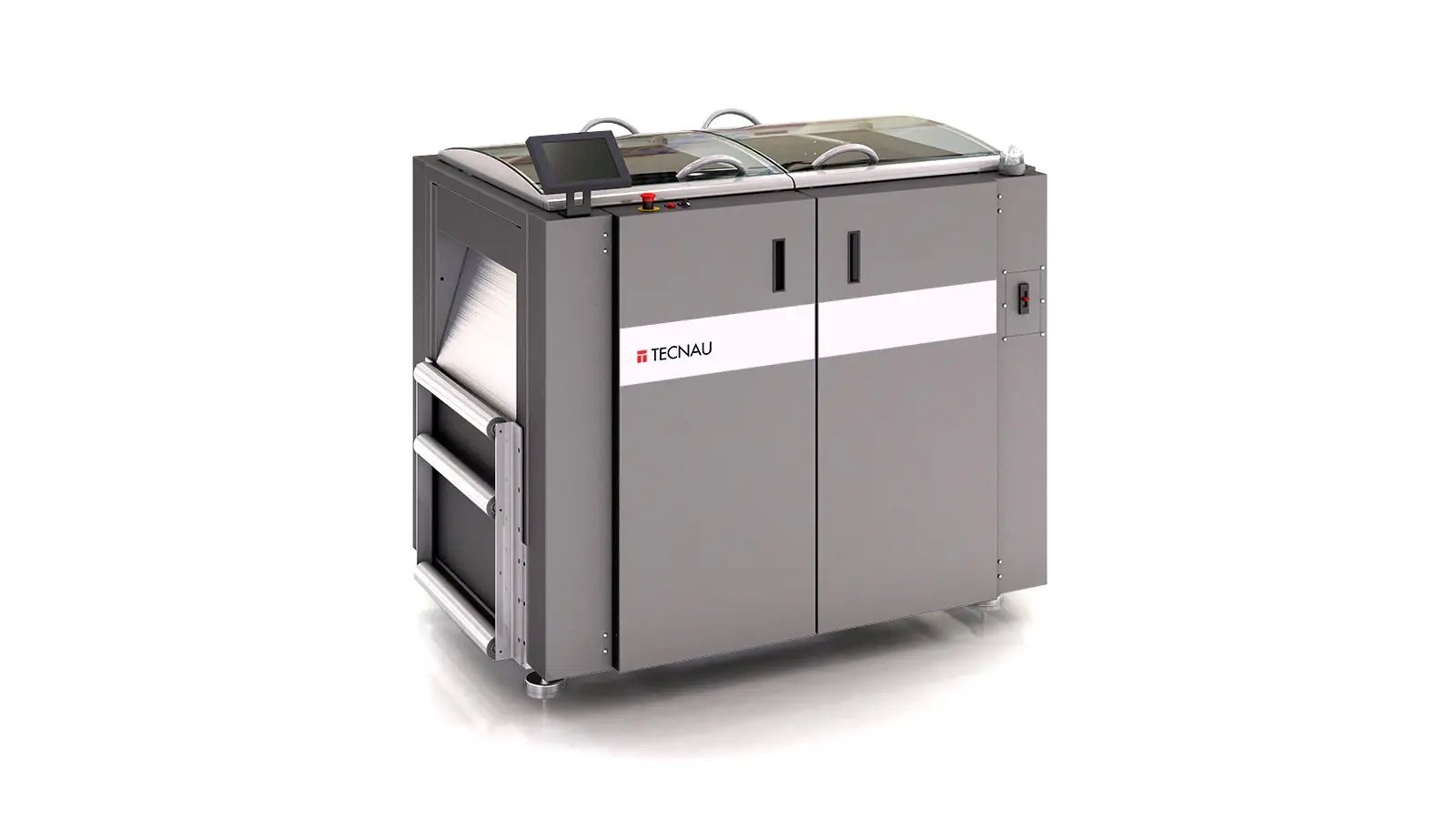

Dynamic Punching TC 1550 HS DP

Specifications
Speed max.	up to 160 m/min ≈ up to 525 ft/min
Paper weight	40 – 250 gsm ≈ 28# text – 10 pt
Web width	4” – 22” (up to 23” upon request)
Form length	89 – 812 mm & up to 2235 mm as a special ≈ 4” – 32” & up to 88” as a special
Punch hole diameter	3 – 8 mm ≈ 0.1” – 0.3”
Punch hole pattern	2-, 3-, 4-holes, round corner & 45° die cut
Punching app	Punch patterns are form specific; other patterns are available upon request
Imposition	2-up

Dynamic Punching Unit for 2-Up Production
