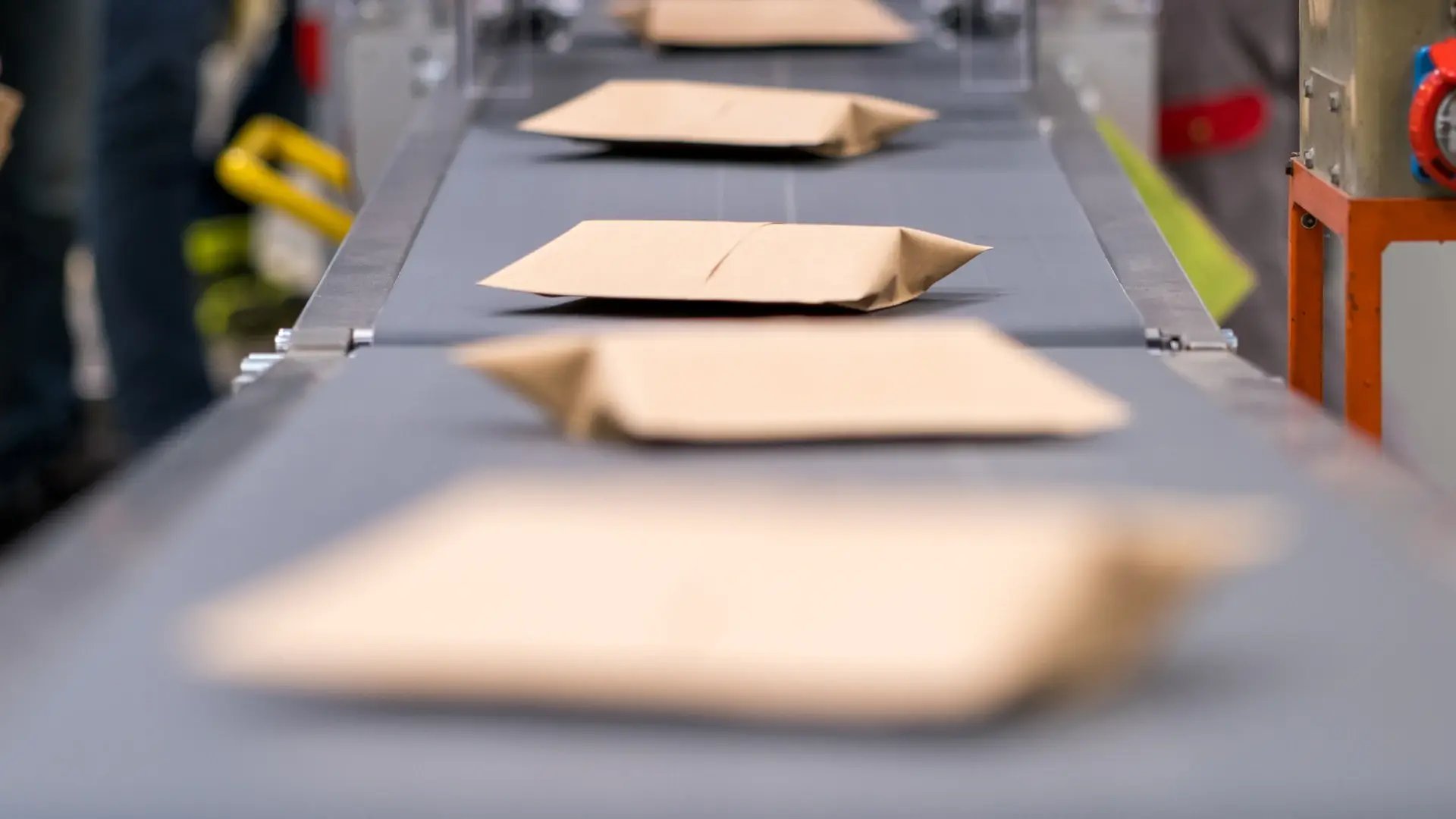

• Fast Pack Fully Automated Package System

    Right-Sized Mailers


    Fully Automated On-Demand Packaging Flow

    Fast Pack and Fast Pack Plus

Stack_5x50_3D_001_Web-1600x950_crop

End-of-line automation. Track and trace. Returnable mailers.

Fast Pack produces pack-to-size padded paper or kraft paper mailers at top speed for B2B and B2C markets.

Key Features

  • Modular layout

  • Package volume optimization

  • Eco-friendly and protective packaging materials

  • Unwinder with automatic reel loading and unwinding system

  • Speeds up to 3600 packages per hour

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


— Brett Keene, CEO, Suttle-Straus

Read the Case Study

tecnau-bug-red

Featured Products

Reduce your environmental impact with automatic packaging using high-performance paper.

Fast Pack is an e-commerce packaging solution that features:

  • Tailor-made package design and dimensions
  • Easy opening and resealable systems for returns
  • Package volume optimization
  • Customized induction system
  • Rejecting gate for products and packages out of specification
  • Dynamic adaptive speed to avoid empty package production
  • Data management and track-and-trace system
  • In-line variable data printing
  • Shipping label application
  • Automatic in-line document printing and merging
Sitma FastPack

Technical Specifications

Specifications Fast Pack Fast Pack Plus
Packaging Speed 900 - 3600 PPH 900 - 2000 PPH
Product size (LxWxH) Min. 120 x 100 x 5 mm / 20 g; Max. 320* x 230 x 70 mm / 2 kg; Min. 4.7” x 4” x 0.2” / 0.044 lbs; Max. 12.6”* x 9” x 2.8” / 4.4 lbs Min. 150 x 100 x 10 mm / 20 g; Max. 420* x 350 x 180 mm / 2 kg; Min. 6” x 4” x 0.4” / 0.044 lbs; Max. 16.5”* x 13.7” x 7” 4.4 lbs
Materials Paper 60 - 120 gsm Paper 80 – 150 gsm
Glue Hot-melt system; Tamper-proof Hot-melt system; Tamper-proof
Cutting and closing Top longitudinal overlap (glue); Cross adaptive cutting (glue) Top longitudinal overlap (glue); Cross adaptive cutting (glue)

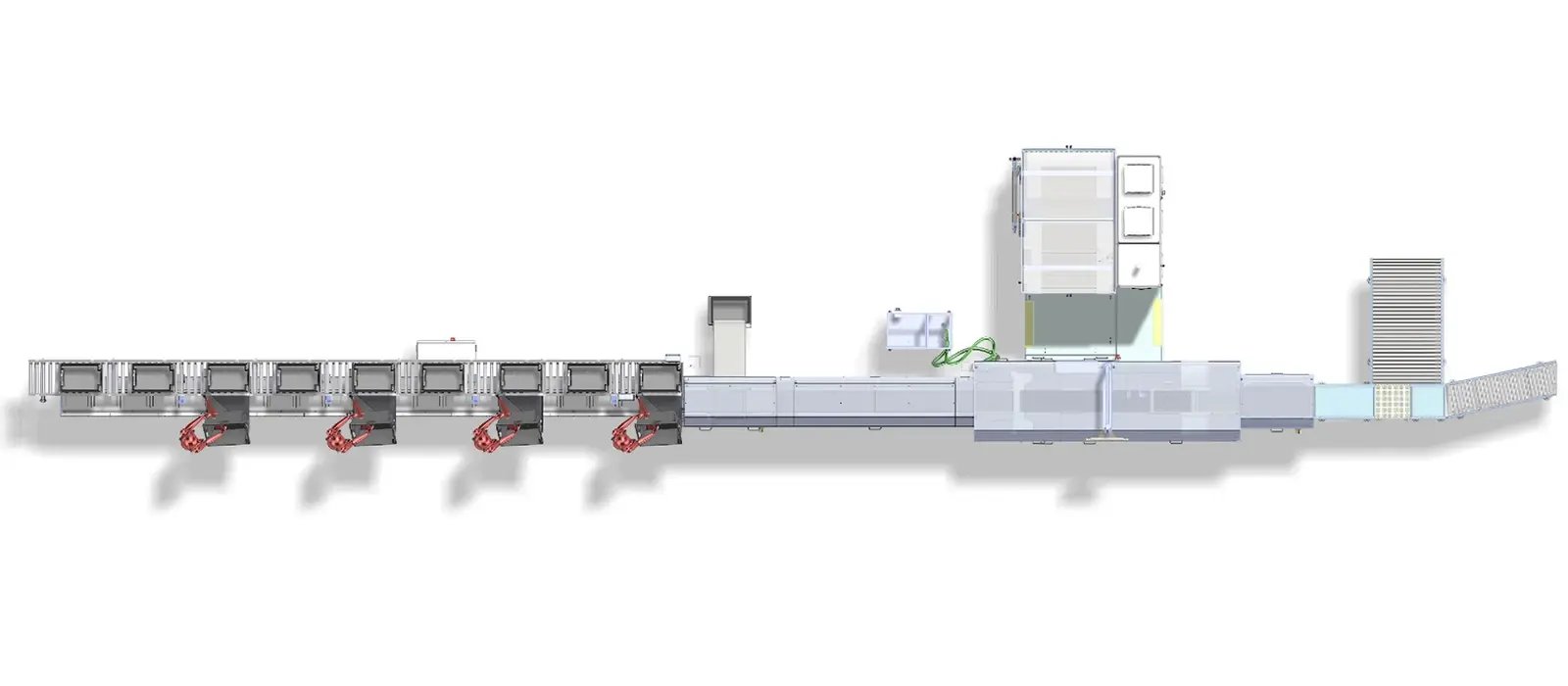

Modular Layout

1. Totes Arrival

2. Item Induction

3. Item Eject System

4. Dynamic Adaptive Speed Buffer

5. Unwinding

6. Track & Trace / Controller

7. Wrapping

8. Package Eject System

9. Package Output
