• NewsReady Cut & Stack Machine

    Continuous Cut & Stack


    Cut and Stack Digitally-Printed Newspapers

    NewsReady™

Stack_5x50_3D_001_Web-1600x950_crop

Add a simple, economical newspaper finishing line to your operation. NewsReady™ cuts, accumulates, folds and stacks sets of sheets, ready for delivery.

Key Features

  • Speeds up to 330 fpm/100 mpm

  • Large paper format handling

  • Reliable lightweight paper handling

  • Versatile finishing options

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


— Brett Keene, CEO, Suttle-Straus

Read the Case Study

tecnau-bug-red

Featured Products

Modular, compact components designed to dramatically improve workflow.

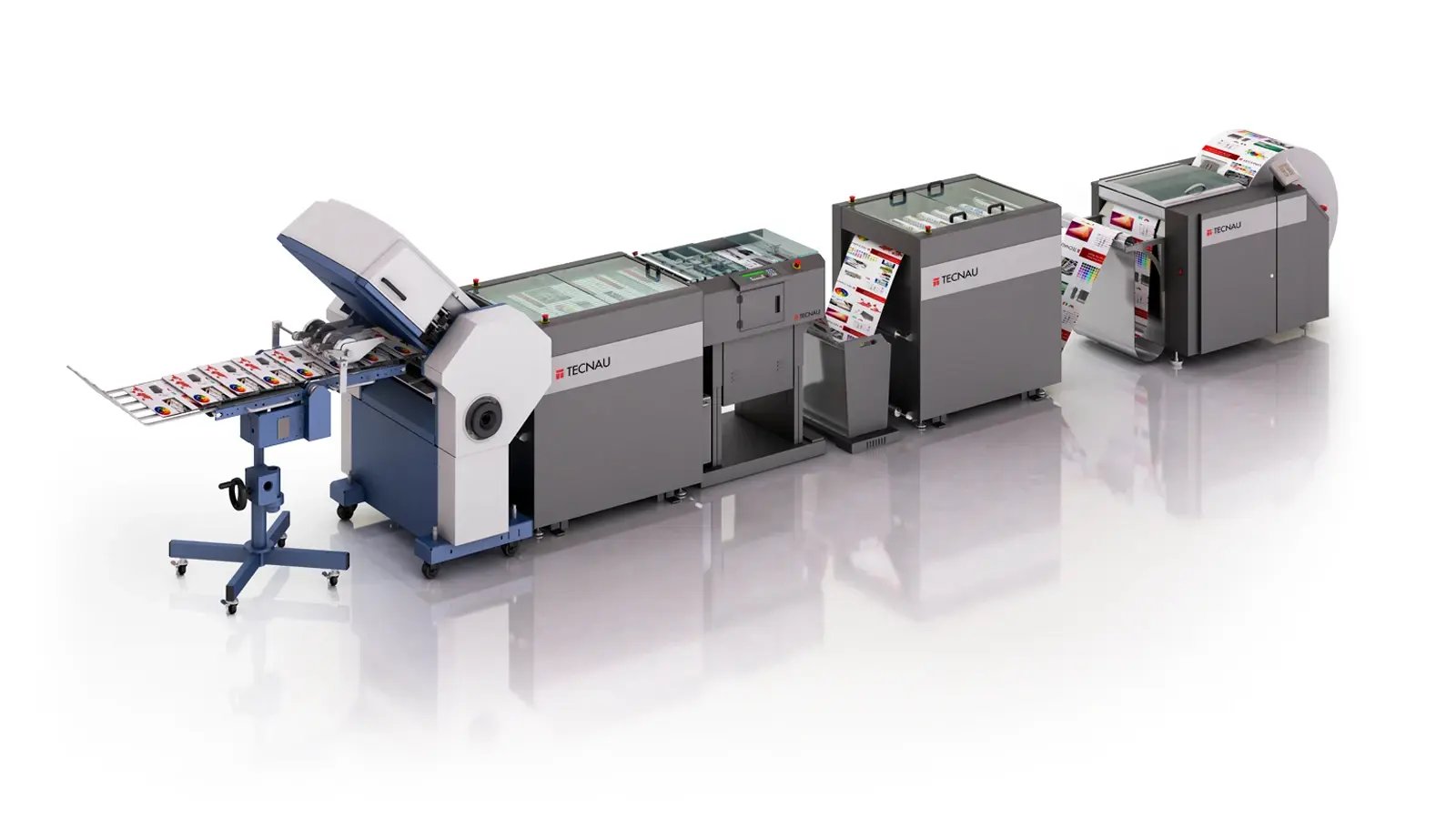

The NewsReady™ solution includes the Unwinder u50i, Cutter TC 7000, Accumulator TC 1007 L and Folder with Exit Conveyor.

Finished newspapers are neat, well folded and accumulated on an exit conveyor to be collected by the operator or delivered to near-line or off-line inserters. The NewsReady cutter cartridges have a unique design which enables quick application changeover and easy on-site maintenance.

This modular system can be easily reconfigured with a Tecnau stacker and shingling conveyor – run newspapers at night with the Accumulator‑Folder, and swap modules the next morning for more conventional, non-folded cut/stack applications. Users are not tied to a single, inflexible solution.

NewsReady

Technical Specifications

Specifications
Speed max. 100 m/min ≈ 330 ft/min
Paper weight 48 gsm min., 32# text min.
Web width 200 – 520 mm ≈ 8" – 20.5"
Web tension Loose
Form width Up to 500 mm ≈ up to 19.7"
Form length Up to 700 mm ≈ up to 25.5"
Roll diameter 100 – 1320 mm ≈ 4" – 52"
Core size 70, 150, 200 mm, 3", 5", 6"

Options and Alternative Configurations

Roll Carts

A variety of roll carts are available to hold and easily transport rolls up to 21” wide. The roll cart maneuvers smoothly to permit easy, quick loading of rolls from a pallet to the unwinder, completely eliminating manual lifting.

Vibrating Collecting Box

Stack together printed and folded books for easy handling and removal with the TC 0040 L Collecting Box.

Cut & Stack Solution

The Stacker TC 1220 along with the Exit Conveyor TC 0320 can be substituted for the accumulator and folder to process up to 20.5” wide webs in 10” stacks with left to right offset.

Product Documentation

 Stack 5151 / Stack 5251 Brochure A4

Download PDF

 Stack 5151 / Stack 5251 Brochure US

Download PDF

Product Documentation

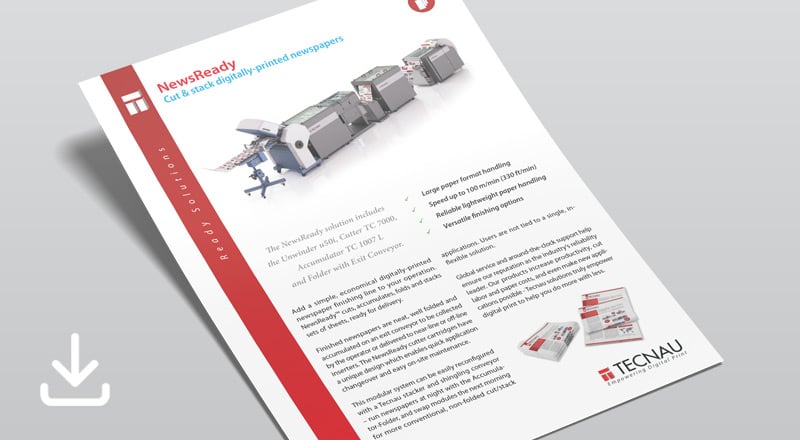

NewsReady product brochure

NewsReady Brochure

Download Brochure
