SheetFeeder VP 6000 for varioPRINT 6000 series TITAN

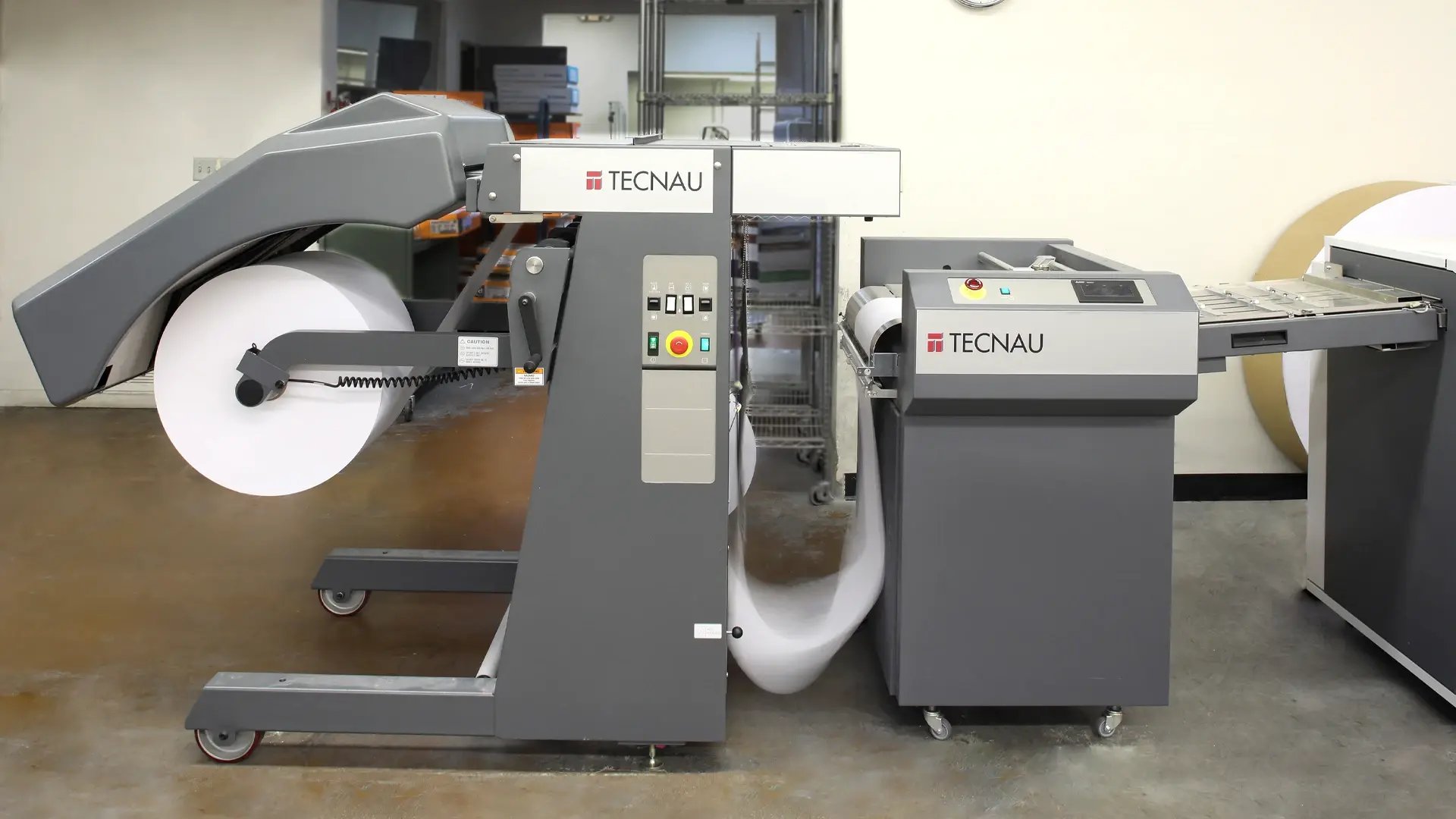

The SheetFeeder VP 6000 is designed especially to feed cut sheets from rolls on demand to Canon varioPRINT 6000 series TITAN printers and includes an unwinder, cutter and sheet transport. The user-friendly unwinder includes automatic decurling, no-lift roll mounting and a self-centering design. Rolls up to 50” in diameter are loaded quickly and easily into the unwinder directly from an optional roll cart.

The unwinder feeds a paper web to the SheetFeeder’s cutter, which then accurately produces consistent, square sheets for on-demand feeding. Form lengths are easily changed with the touch of a button. The reliable sheet transport feeds single sheets to the printer, on demand, without diminishing standard input tray capacity. No buffer means reliable feeding with virtually no waste when changing applications.

The SheetFeeder VP 6000 runs every form size the Canon varioPRINT 6000 series can handle, and paper weights down to qualified 27# text (39 gsm) papers. The system can switch form sizes between letter and tabloid, or between A4 and A3, without changing rolls. SheetFeeder cuts to final sheet size for big savings on odd sizes, and saves you even more on lightweight and other non-standard papers. The optional hole punch is perfect for ring binder applications, and running pre-printed bills and statements is simple with optional print register.

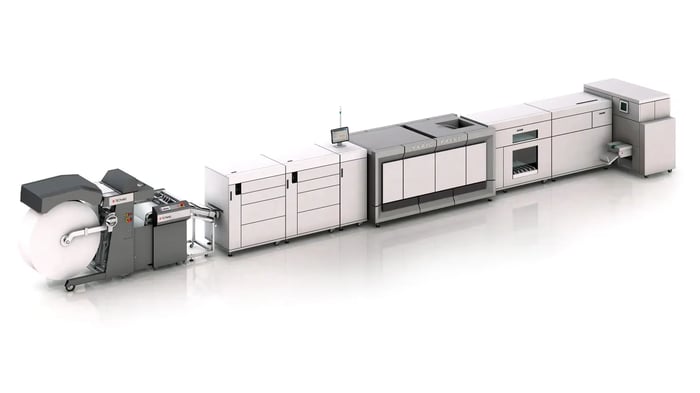

The SheetFeeder VP 6000 is compatible with all Canon varioPRINT 6000 TITAN Series digital printers. The system can be combined with finishing devices such as self-mailers, gluers/folders, stitchers and binders to provide complete end-to-end solutions. All components use standard power, are mobile, modular, compact, and designed to dramatically improve workflow.

Specifications
Paper weight	16# bond – 110# index, 60 – 200 gsm
Expanded weight	27# – 35# text, 39 – 59 gsm
Roll diameter	100 – 1270 mm ≈ 4" – 50"
Roll weight	680 kg ≈ 1500 lbs
Core size	70, 150, 200 mm, 3", 5", 6"
Web width	203 – 350 mm ≈ 8" – 13.8"
Processing	203 x 178 to 350 x 500 mm ≈ 8" x 7" to 13.8" x 19.7"

Hole Punch

Operator selectable in-line US 3-Hole or A4 2/4-Hole. Avoid changing stock, save money on paper, and reduce inventory. Other punch patterns are available.

Print Register

Run pre-printed forms from a roll.

Running Micro-Perforator

Perforate in process direction to create tear-off remittance slips or other special applications, for significant savings on special stocks.

Right-Hand and Left-Hand Infeeds

For space-planning flexibility.

Roll Carts

Move, store and load rolls with greater efficiency.
