• Sitma 8002 frozen food packaging machine

    High-Speed Wrapping


    Food Grade Wrapping System

    Sitma W8002

Stack_5x50_3D_001_Web-1600x950_crop

Sitma W8002 reliably and efficiently packages frozen food products so they are completely sealed and protected.

Key Features

  • Stainless steel structure in conformity with Hygienic Design requirements

  • Choose from lower longitudinal sealing, side sealing or “display” sealing

  • Packaging with bottom overlapping, possible shrinking

  • speeds up to 9000 pieces/hour

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


— Brett Keene, CEO, Suttle-Straus

Read the Case Study

tecnau-bug-red

Featured Products

Simple and fast film reel change requires no machine stoppage.

The Sitma W8002 food grade wrapping system is ideal for the packaging of frozen food products. A synchronization module maintains product separation and optimizes production capacity by regulating the feeding sequence, increasing overall efficiency. This machine offers producers the ability to process pre-printed and multi-layer film, which can replace the use of cardboard boxes for product presentation.

The W8002 features a shrink tunnel designed for easy opening, cleaning, and inspection and a control panel for direct adjustments. Production settings are easily adjusted because of the simultaneous installation of different sealers. Additionally, the W8002 features two film reels for extended autonomy.

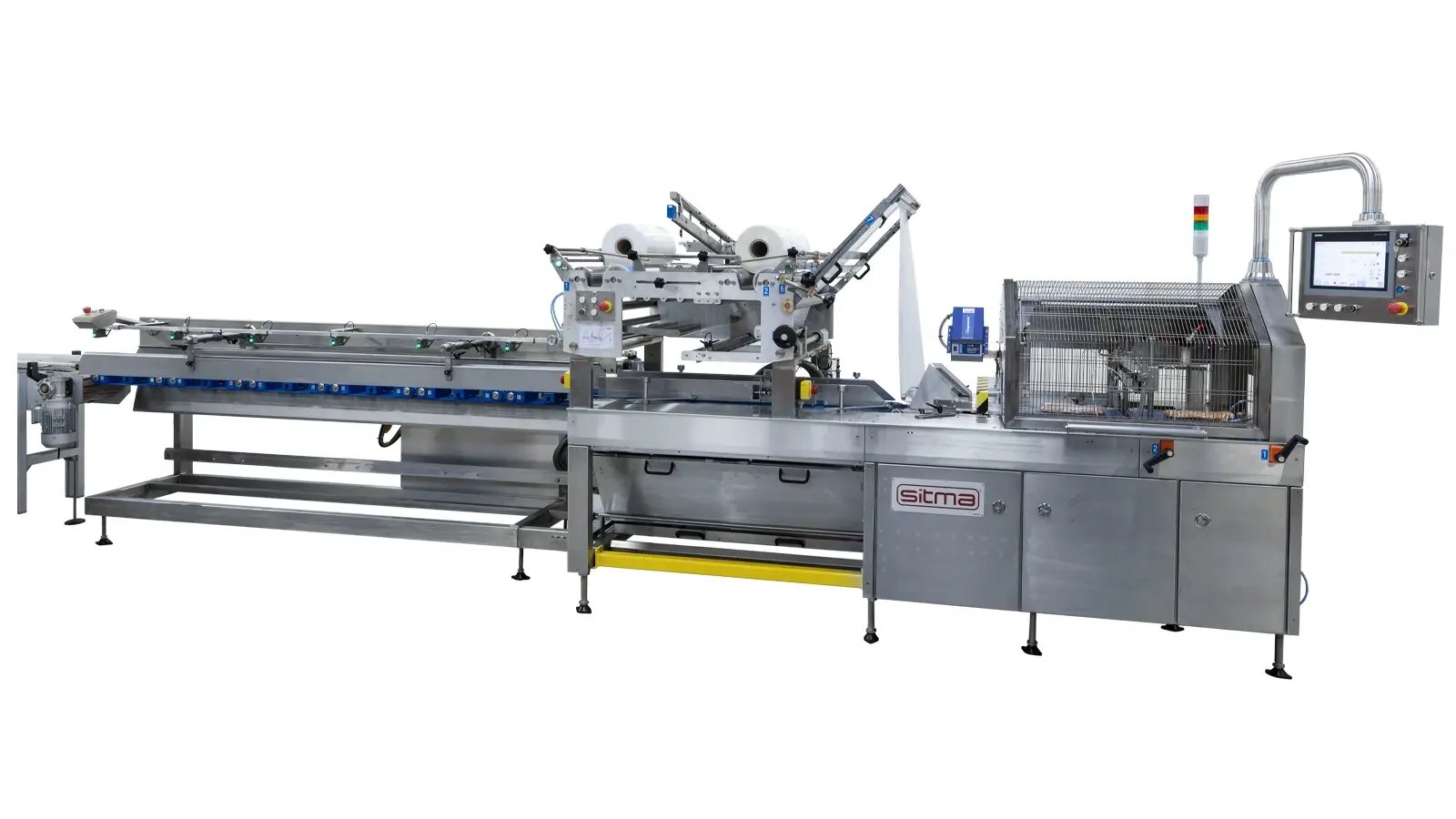

Sitma 8002 food grade wrapping machine

Technical Specifications

Specifications
Product infeed Manual as standalone; Automatic in line
Product size Width: 100 - 400 mm / 4” - 15.75”; Length: 150 - 400 mm / 6” - 15.75”
Max product height Up to 80 mm / 3.15”
Packaging Speed Up to 150 pieces/min
Film reel Width: 250 - 1000 mm / 10” - 39”; Diameter Max: 400 mm / 15.7”
Film thickness 9 - 80 μm
Materials BioFilm, Mono or Multi Layer PVC/PE, PPO, Heat-Shrinking Film, Pre-Printed Film
