Stack 1010 for varioPRINT Sheetfed Press

Tecnau’s Stack 1010 reduces manual print handling and consolidates labor-intensive finishing operations in an inline automated process.

For applications from bills and statements to letters, books, and marketing brochures, from postcards to posters, Stack 1010 slits, cuts, trims, removes gutters/bleeds and stacks output, allowing users to process sheets in cost-effective multiple-up impositions without offline finishing.

The smart design of this solution allows for easy upgrades from standard cut and stack by adding modules to quickly expand printing possibilities down the road after installation. Choose additional options for dynamic perforations or punching — your investment is well protected.

Compatible with the varioPRINT iX-series and varioPRINT i-series.

Specifications
Speed max.	160 ppm A4 size ≈ 156 ppm letter size
Paper weight	70 – 350 gsm, 45# text – 130# cover
Input width	178 – 363 mm ≈ 7” – 14.3”
Input length	178 – 520 mm ≈ 7” – 20.5”
Output width	1-up: 203 – 356 mm ≈ 8” – 14”; 2-up: 127 – 178 mm ≈ 5” – 7”; 3-up: 98 – 113 mm ≈ 3.85" – 4.4"
Output length	102 – 495 mm ≈ 4” – 19.5”
Edge trimming	5 – 32 mm ≈ 0.2” – 1.25”
Imposition	Single or full bleed for 1-up, 2-up, 3-up, 4-up, 6-up, 8-up, 9-up
Gutter cut	6.35 – 12.7 mm ≈ 0.25” – 0.5" (Up to 25.4 mm with application review)
Output options	1 stack, 2 stacks, or 3 stacks
Stack height	20 mm max ≈ 0.8" ≈ 100 photos, 250 mm ≈ 10" ≈ 2000 sheets
Offset	15 mm ≈ 0.6"

TC 1530 C

Create horizontal & vertical dynamic perforations for remittance stubs, coupons & tear-out pages. The TC 1530 C dynamic perforating module may also provide dynamic cross scoring and vertical creasing capabilities for easy folding.

TC 1530 P

Add the TC 1530 P for spiral/coil bind punching or dynamic ring-binder punching to facilitate a variety of binding methods.

Tecnau Connect

This software control package keeps track of all processed sheets and reports missing pages from each job to control re-prints and complete customers’ orders.

Direct Mail

Finishing Solutions

Learn more

Transactional Print

Finishing Solutions

Learn more

Commercial Print

Finishing Solutions

Learn more


Finishing Solutions

Learn more

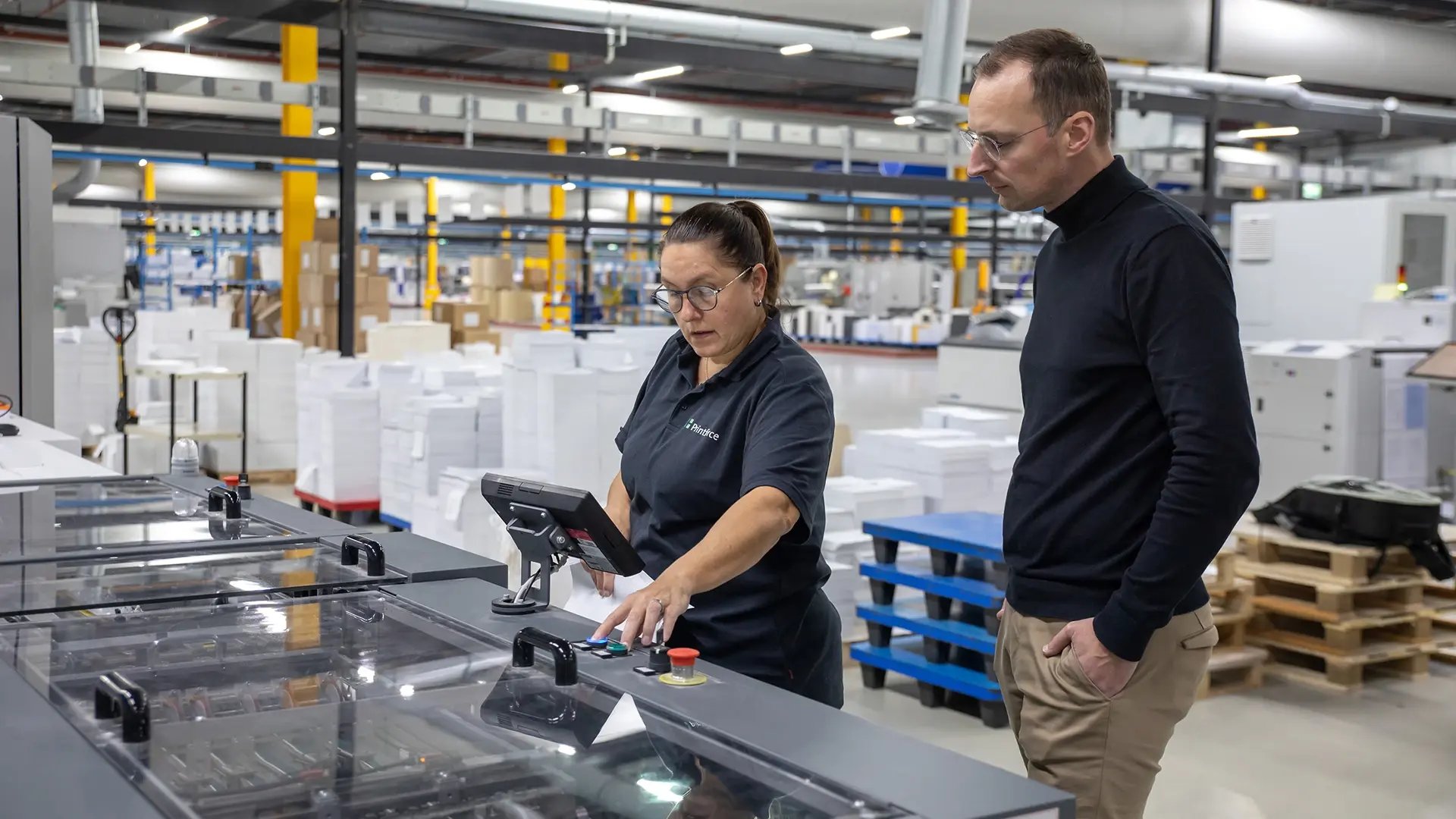

Sheetfed cut & stack

Stack 1010

Convert multi-up output from your Canon varioPRINT iX-series color inkjet press into smaller, stacked finished pages without guillotine cutters.

Key Benefits

Featured Products

Stack 1010 includes Cutter c10 and Stacker s10 inline behind your varioPRINT iX-series.

Technical Specifications

Modular System Options

TC 1530 C

TC 1530 P

Tecnau Connect

Product Documentation

Stack 5151 / Stack 5251 Brochure A4

Stack 5151 / Stack 5251 Brochure US

Product Documentation

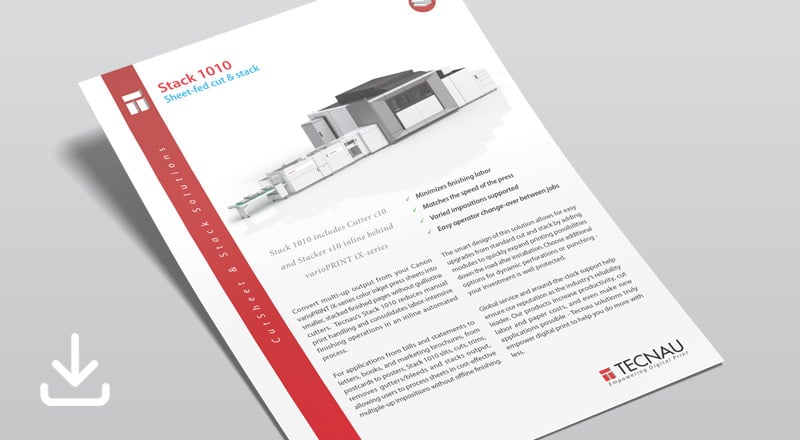

Stack 1010 Brochure
