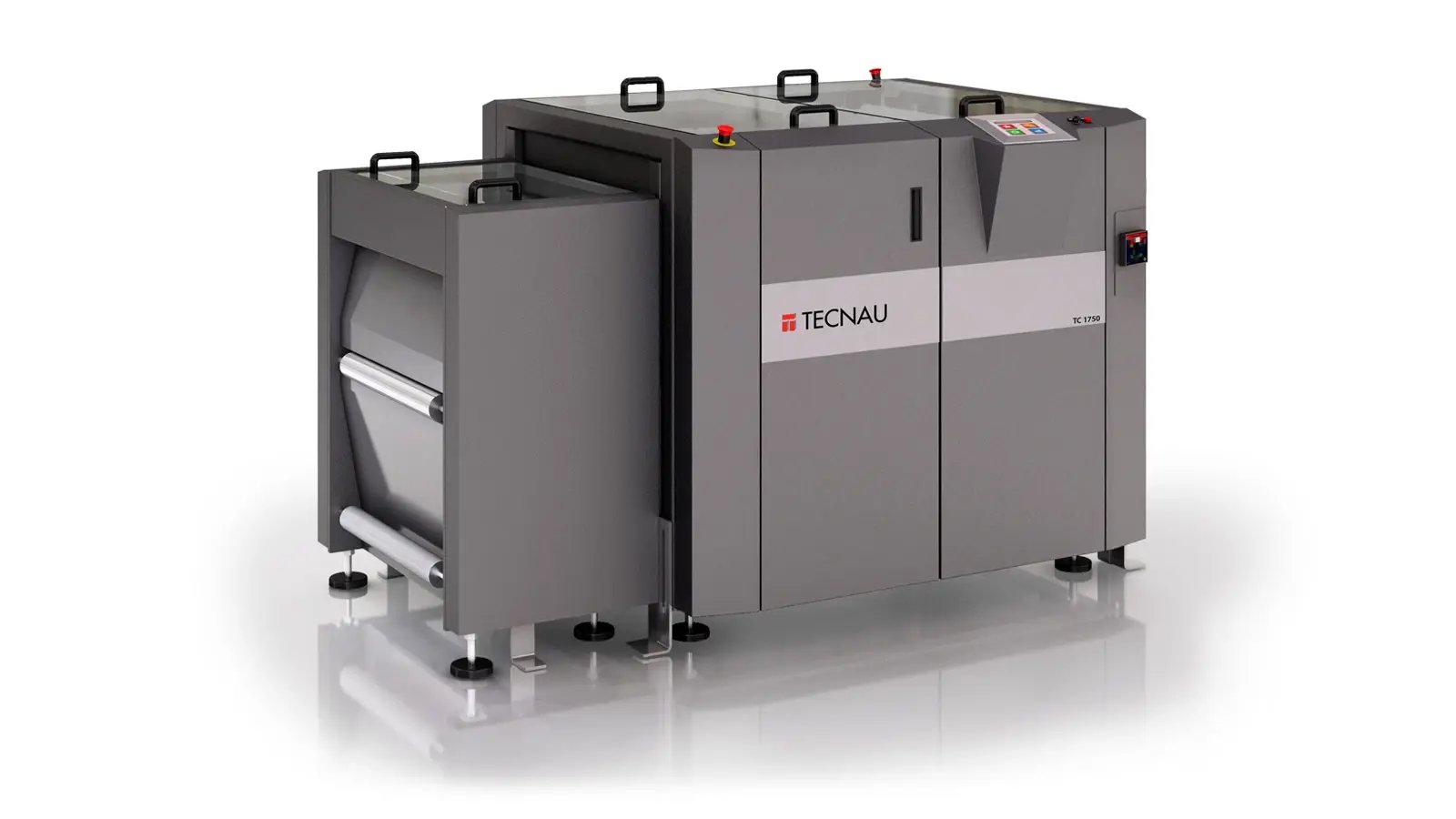

    Static Fanfold Perf & Punching TC 1770

Stack_5x50_3D_001_Web-1600x950_crop

With an additional cross perforation cylinder and programmable perforation position that can be easily changed job by job, the TC 1770 makes it possible to run static giro perf or coupon perf with a single processing unit.

Key Features

  • Fanfold perforation intervals 7” to 20”, automatically adjustable from operator panel

  • Easily program application changes from operator panel or by remote access

  • Up to four line hole punching devices (for side and central line holes) and up to four vertical perforation knives

  • Standard pre-processing or unique post-processing device

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


— Brett Keene, CEO, Suttle-Straus

Read the Case Study

No need to swap out heavy gears to change perforation spacing—simply choose the appropriate length on the touch-screen control panel.

The TC 1770 may be configured either before or after the high speed digital printer. The new post-printer configuration eliminates any possible risk of contamination of printing heads from paper dust generated by the punching or perforating process.

Whether before or after the printer, the TC 1770 is equipped with a vacuum system to clean the web and prevent paper dust from being transferred to the following process.

The TC 1770 Punch & Perf has been designed to work in line from roll-to-roll or roll-to-stack (fanfold) applications.

Static Fanfold Perf & Punching TC 1770 HS

Technical Specifications

Specifications
Speed max. 230 m/min ≈ 750 ft/min
Feeding Pinless
Paper weight 70 – 120 gsm
Web width 204 – 560 mm ≈ 8" – 22"
Perf type Static
Punch type Static
Perf. distance 178 – 508 mm ≈ 7" – 20" at maximum speed for each cylinder (2)
Punch wheels distance 191 – 546 mm ≈ 7.5” – 21.5”
Punch hole diameter 4 mm ≈ 0.16”
Punch hole distance 12.7 mm ≈ 1/2"
Processing 1-up, 2-up
In-field upgrade No
Weight 1100 kg
Dimensions 2240 × 1380 × 1260 mm

Optional Capabilities

TC 1707 MPD

The Mark Printing Device enables  synchronization with printers that do not support registration to tractor holes, ensuring seamless compatibility with a wide range of systems.

Product Documentation

 Stack 5151 / Stack 5251 Brochure A4

Download PDF

 Stack 5151 / Stack 5251 Brochure US

Download PDF

Product Documentation

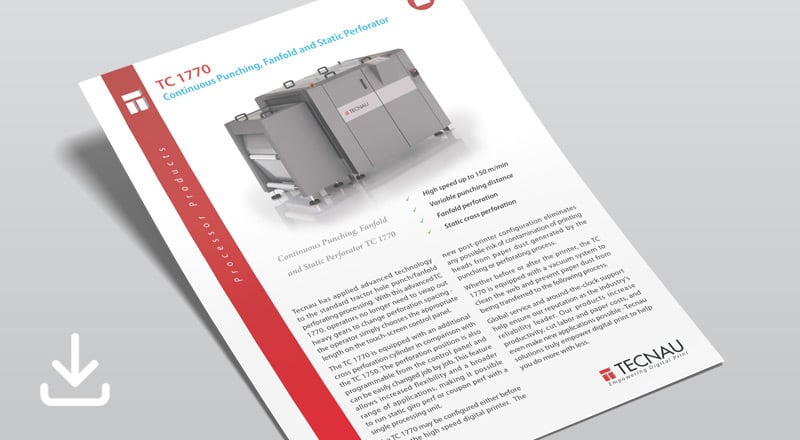

Static Fanfold Perf & Punching TC 1770 HS product brochure
