    Continuous Tractor Hole Punching

    Static Punching TC 1750 P

Stack_5x50_3D_001_Web-1600x950_crop

A reliable and cost-effective solution to convert pinless paper into pinfeed paper, to be used in near-line inserting or finishing utilizing tractor holes transport.

Key Features

  • Easily program application changes from operator panel or by remote access

  • Up to four line hole punching devices (for side and central line holes) and up to four vertical perforation knives

  • Standard pre-processing or unique post-processing device

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


— Brett Keene, CEO, Suttle-Straus

Read the Case Study

Modular, compact and designed to dramatically improve workflow.

With speeds up to 150 m/min, the TC 1750 P may be configured either before or after the high-speed digital printer. The new post-printer configuration eliminates any possible risk of contamination of printing heads from paper dust generated by the punching process.

Whether before or after the printer, the TC 1750 P is equipped with a vacuum system to clean the web and prevent paper dust from being transferred to the following process.

Two tractor hole punch wheels are standard; two more wheels may be added for two-stream pinfeed punching.

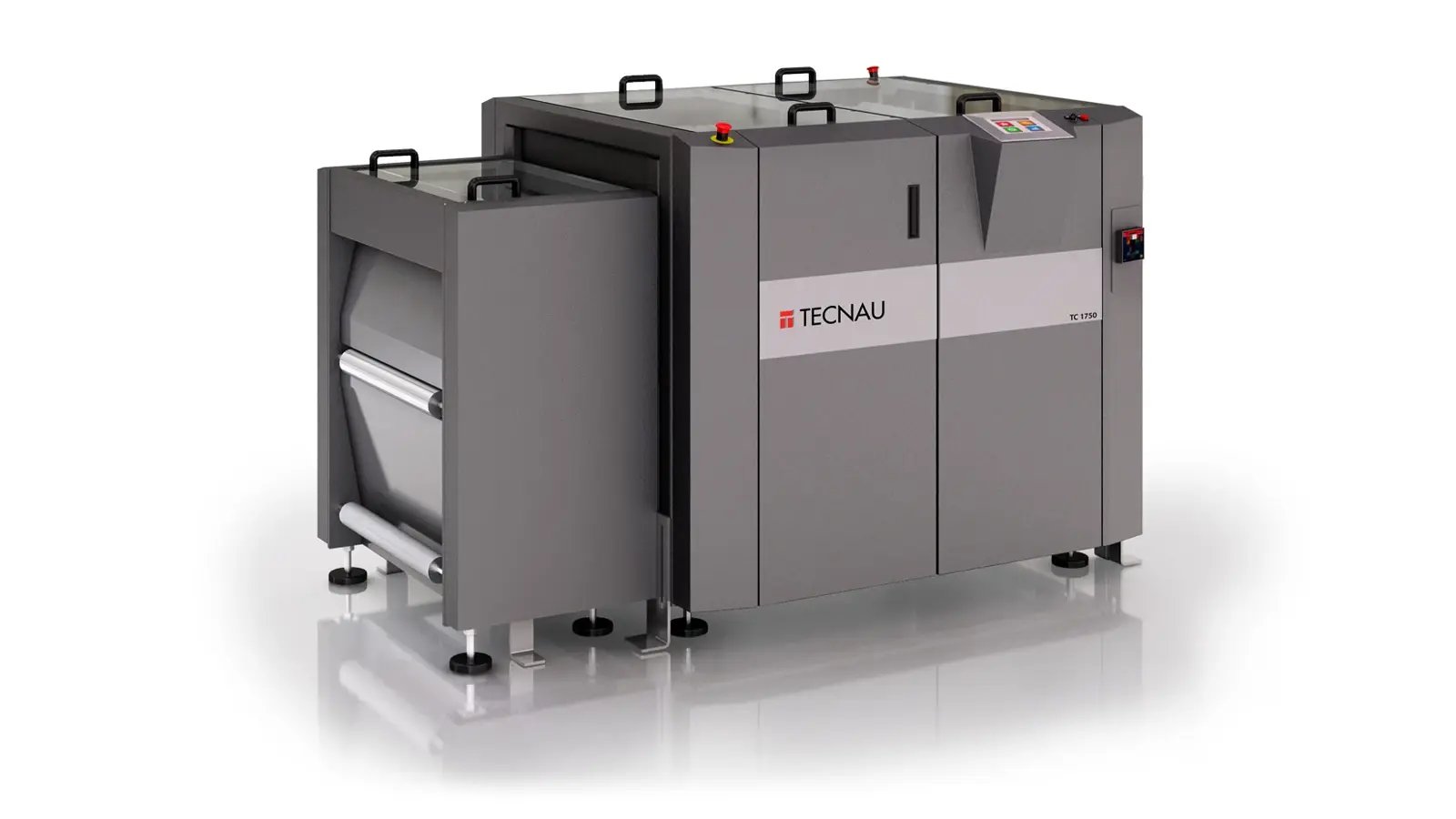

Static Punching TC 1750 HS P

Technical Specifications

Specifications
Speed max. 230 m/min ≈ 750 ft/min
Feeding Pinless
Paper weight 70 – 220 gsm (above with HeavyPaperKit)
Web width 204 – 560 mm ≈ 8" – 22"
Punch type Static
Punch wheels distance 191 – 546 mm ≈ 7.5” – 21.5”
Punch hole diameter 4 mm ≈ 0.16”
Punch hole distance 12.7 mm ≈ 1/2"
Processing 1-up, 2-up
In-field upgrade No
Weight 900 kg
Dimensions 1940 × 1380 × 1260 mm

Optional Capabilities

TC 1707 MPD

The Mark Printing Device enables  synchronization with printers that do not support registration to tractor holes, ensuring seamless compatibility with a wide range of systems.

Product Documentation

 Stack 5151 / Stack 5251 Brochure A4

Download PDF

 Stack 5151 / Stack 5251 Brochure US

Download PDF

Product Documentation

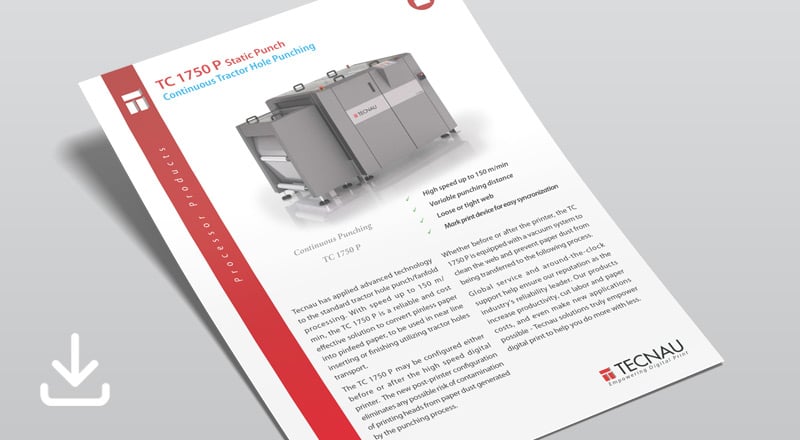

Static Punching TC 1750 HS P product brochure

Static Punching TC 1750 P Brochure

Download Brochure
