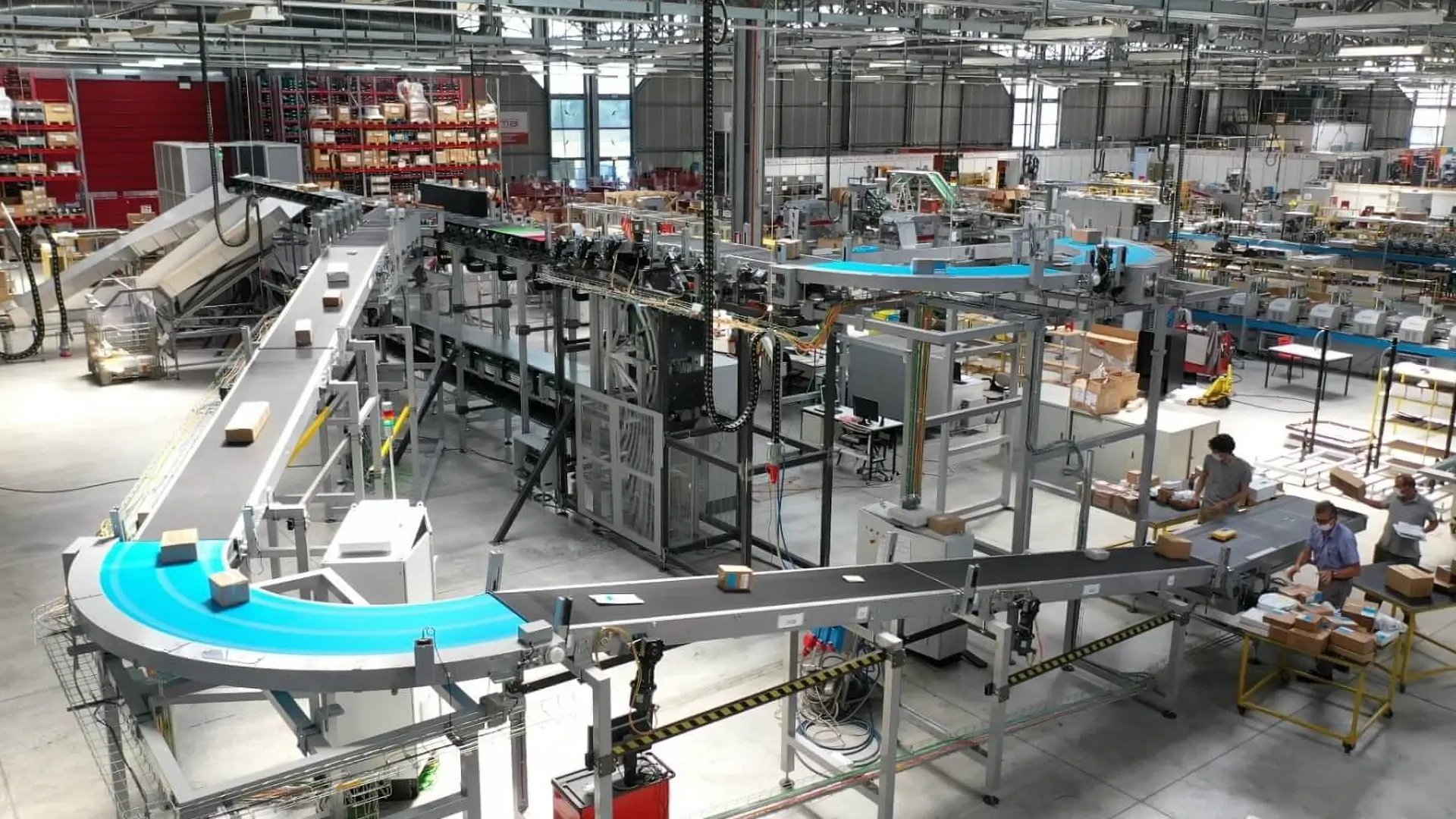

• Symphony Sort High Speed Tilt Tray Sorter

    High-Speed Feeding/Insertion



    High-Speed Tilt Tray Sorter

    Symphony Sort

Stack_5x50_3D_001_Web-1600x950_crop

The automated Sitma Symphony Sort is ideal for sorting regular and irregular packages and products of multiple shapes and sizes.

Key Features


  • Sturdy, high-performing tilt tray sorter

  • Sort up to 12,000 items per hour

  • Can handle products of multiple shapes and sizes

  • Smart induction and ability to combine multiple streams as they arrive at the sorter

  • High load capacity

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


Brett Keene, CEO, Suttle-Straus

Read the Case Study

tecnau-bug-red

Featured Products

A modular concept means easy configuration, even in the case of complex and elaborate layouts.


The Sitma Symphony Sort is a high-performing automated tilt tray sorter ideal for sorting regular and irregular packages and products of multiple shapes and sizes.

Capable of sorting up to 12,000 items/hour, this flexible solution can support multi-level and multi-directional configurations to respond to a constantly increasing production capacity need. Customized configurations also include the possibility of combining several modules to increase the number of outputs.

The Symphony Sort has a high load capacity of up to 15 kg per tray. Its gear-free electromagnetic traction systems help reduce noise, and the machine requires minimal maintenance thanks to simple design and robust construction.

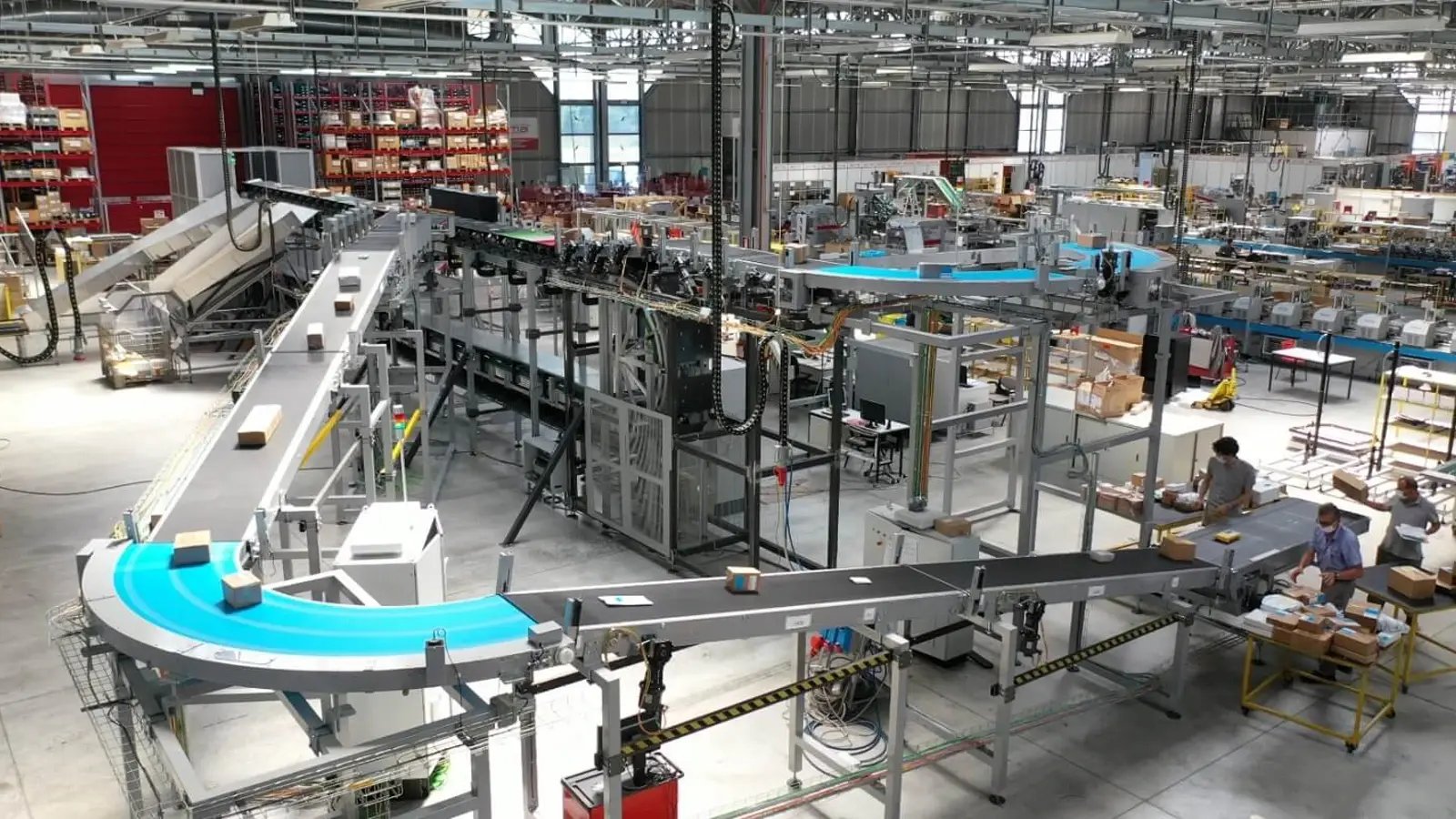

Sitma Symphony Sort Automated Tilt Tray Sorter

Technical Specifications


Specifications
Sorting Speed Up to 12,000 items/hour
Minimum size 100x150x10 (h) mm / 3.9”x5.9”x0.4”
Minimum weight 50 g / 0.1 lbs
Maximum size 540x600x400 (h) mm / 17.7”x23.6”x15.7” (h)
Maximum weight 15 kg / 33 lbs

Modular System Options


Several Possible Configurations

Straight, curved or modules suitable for managing ascent and descent, as well as possibility of combining several modules to increase the number of outputs.

Custom Software Configurations

A wide variety of options based on customer's needs.
