    Stand-Alone Cutters


    High-Performance Ticket Cutter

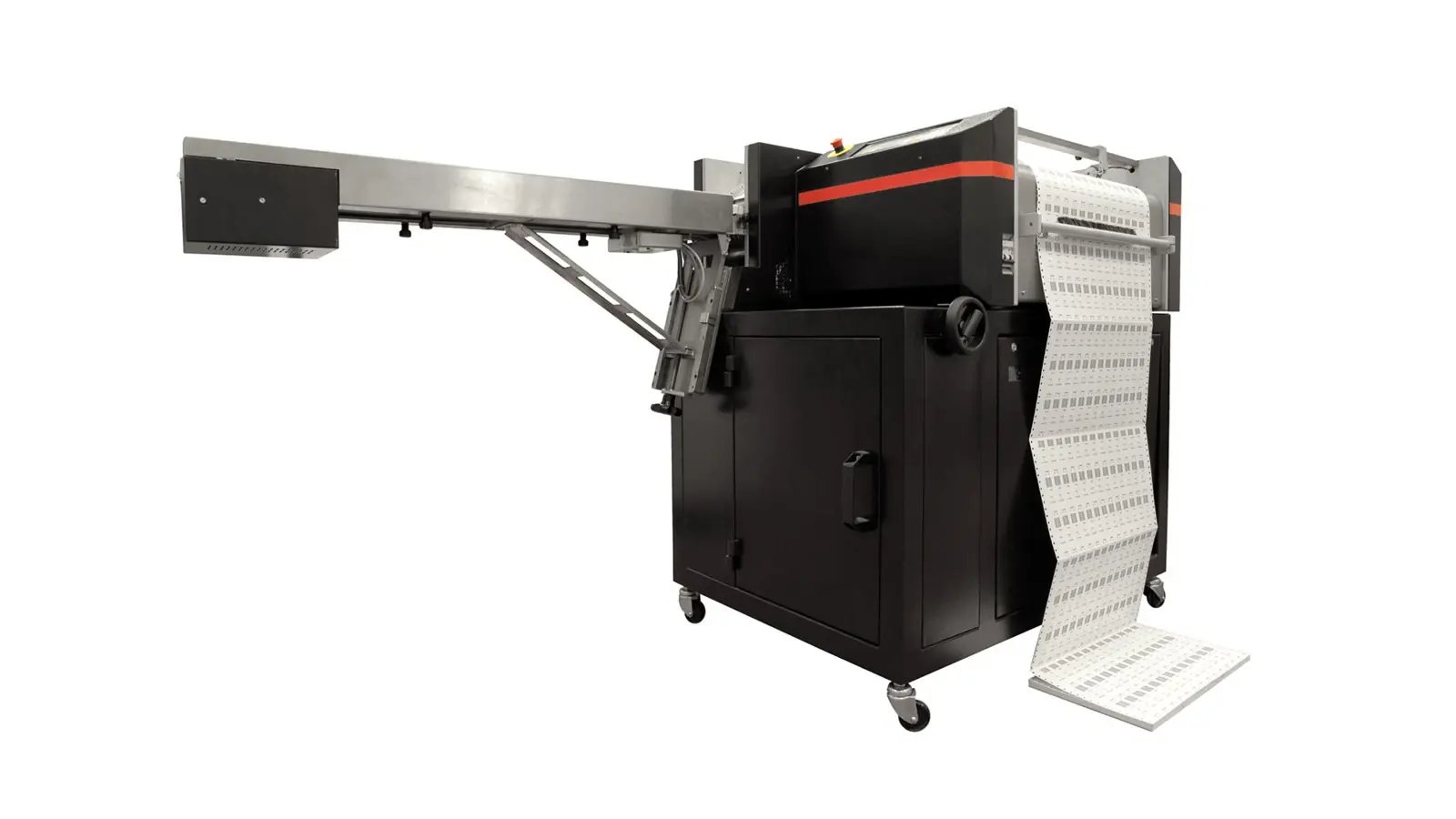

    Ticket Cutter TC 4000

Stack_5x50_3D_001_Web-1600x950_crop

A unique cartridge design and guillotine technology make cutting tickets a breeze.

Key Features

  • From 7 to 14 knives can be used to cut from 6 to 13 tickets

  • Special 18 knife cartridge to cut up to seventeen 1.25” tickets

  • Paper loop interface for connection to laser printers

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


— Brett Keene, CEO, Suttle-Straus

Read the Case Study

High-speed ticket cutting — up to 8500 cuts per hour

The unique cartridge design of the Ticket Cutter TC 4000 offers cross blade cartridges and trimming cartridges, which are removable and interchangeable at operator level.
Ticket Cutter TC 4000

Technical Specifications

Specifications
Speed max. Up to 8500 cuts per hours (4” ticket)
Feeding Pinfed
Paper weight 150 – 350 gsm ≈ 40# bond – 135# cover
Web width 102 – 508 mm ≈ 4" – 20", 521 mm ≈ 20.5" special
Form width 25 – 89 mm ≈ 1" – 3.5" Tickets
Form length 38 – 114 mm ≈ 1.5" – 4.5" Tickets
Ticket number/cut Max. 17 per cut
Trimming 25 mm ≈ 1" per side max

Product Documentation

 Stack 5151 / Stack 5251 Brochure A4

Download PDF

 Stack 5151 / Stack 5251 Brochure US

Download PDF

Product Documentation

Ticket Cutter TC 4000 Datasheet

Ticket Cutter TC 4000 Datasheet

Download Brochure
