    Vision & Control


    100% Quality Control at Full Production Speed

    WebVision

Stack_5x50_3D_001_Web-1600x950_crop

Print quality is critical to the performance of your business. The WebVision™ solution for integrity and quality in print operations can examine every page of print in-line as it’s produced on today’s fastest digital printers and perform instant analysis to ensure quality results.

Key Features

  • Inspect the entire web

  • 360 dpi resolution for color

  • Target critical areas

  • Take predetermined actions

  • Reduced waste

  • Job templates for quick setup

Tecnau logo frame

icon-quotes-gray

We no longer have the ‘have-the-job-but-can’t-get-it-done-in-time’ issue. Lead times are 30–50% less.


— Brett Keene, CEO, Suttle-Straus

Read the Case Study

tecnau-bug-red

Featured Products

WebVision analyzes print immediately, so problems are identified immediately and corrective action may be taken immediately.

WebVision is highly configurable, with internal-to-the-printer (WebVision INspect) and external (WebVision EXspect) versions, as well as a variety of software packages to more closely match your application requirements, ranging from simple display of the web for easy operator review to full, multiple testing functions to alert the operator to a variety of possible work-flow or print quality issues. WebVision ONspect is an economical inspection alternative for those with simple bar-code reading requirements.

Software capabilities: Barcode grading, Print Quality Verification, Color Verification, Format Verify, Postal Verify, Address Verify and Sequence Verify, Job tracking and reporting, Matching (front to back), Data Validation, Image recording and output and more.

WebVision

Technical Specifications

Specifications
Speed max. Slack web: 108 m/min ≈ 350 ft/min, Taut web: 228 m/min ≈ 750 ft/min
Print 1-up, 2-up, Duplex, Simplex
Web wdith 200 – 530 mm ≈ 8" – 21"
Resolution 360-dpi grayscale or color

Core Functionality

User Interface

  • Touch screen wide-format (2-up) monitor
  • Multi-lingual operator interface (English, Spanish, French, German, Polish, Japanese, Swedish, Dutch)
  • Simple template-driven job setup
  • Multiple simultaneous areas of interest and quality tests per page
  • Freeze, pan, zoom and replay images
  • Visual warnings and alerts

Supported Symbologies

WebVision reads common 1D, 2D and Postal barcodes, as well as OCR fonts.

System Connectivity

  • Real-time connectivity with ADF systems
  • Communication with printers and/or post processing devices
  • Generate configurable data output to networked systems

Data Management

  • Onboard SQL database for real-time lookup, analysis and logging
  • Extensive data export capabilities

Product Documentation

 Stack 5151 / Stack 5251 Brochure A4

Download PDF

 Stack 5151 / Stack 5251 Brochure US

Download PDF

Product Documentation

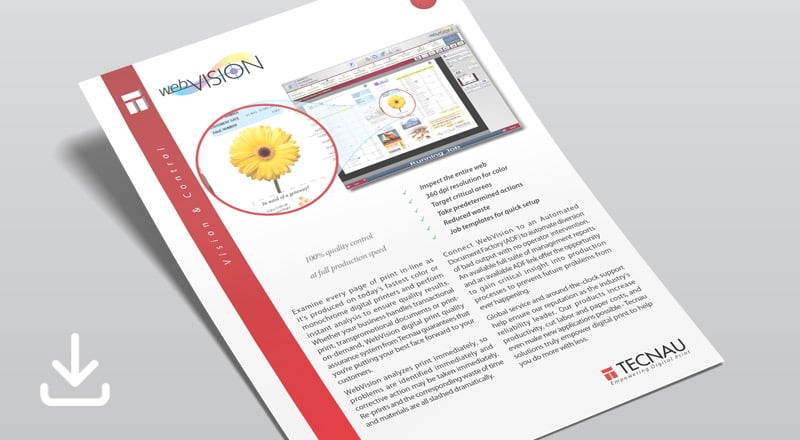

WebVision brochure
