• Splicer Roll 55

    Roll-to-Roll



    Roll Change on the Fly

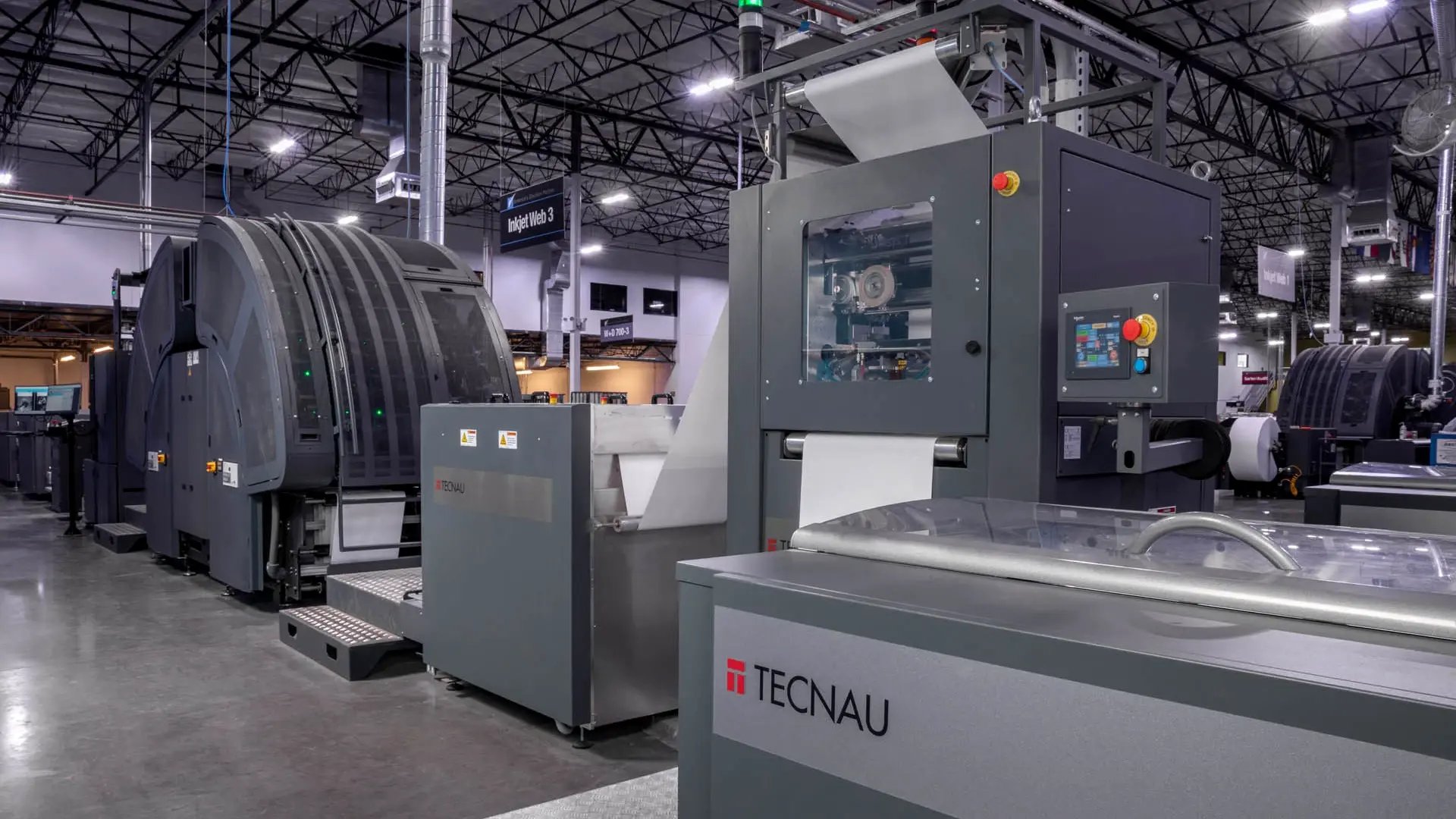

    Zero Speed Splicer Roll 55

The Zero Speed Splicer Roll 55 automatically changes input and output rolls, eliminating printer stoppages for roll changes and keeping your printer running at full speed and full productivity

Key Benefits


  • Roll change on the fly

  • Increase printer uptime

  • Reduce paper waste

  • Maintain application flexibility

Maximize your investment in high-speed continuous digital color printing


Printer stoppages due to roll changeover can last up to fifteen minutes. With today's fast printers running through a roll as quickly as less than an hour, percentage downtime due to roll changes can exceed 25%. With the Zero Speed Splicer Roll 55, this percentage drops to zero. Significantly, the Roll 55 also virtually eliminates the lengthy paper waste associated with printer stoppages due to input roll depletion and output roll completion.

The Zero Speed Splicer Roll 55 adds flexibility to your operation, accommodating a broad variation in paper weights in successive rolls, and even accommodating variation in successive roll widths. The web may be justified to the left, right or center, allowing the Roll 55 to work with varying digital production printers.

Splicer Roll 55

Technical Specifications


Specifications
Speed max. 250 m/min ≈ 820 ft/min
Paper weight 16# bond – 114# cover, 60 – 300 gsm (above 200gsm requires application review)
Paper weight variation Fully variable between rolls for automatic splicing
Web width 204 – 560 mm ≈ 8" – 22", up to 584 mm ≈ 23" upon request
Web width variation 1” (25 mm) per side for automatic splicing
Roll diameter 100 – 1320 mm ≈ 4" – 52"
Roll weight Heavyweight roll shafts: 900 kg ≈ 1984 lbs, Standard roll shafts: 800 kg ≈ 1764 lbs

Modular System Options


Roll Carts

Easily move, store and load paper rolls.

Product Documentation


 Stack 5151 / Stack 5251 Brochure A4

Download PDF

 Stack 5151 / Stack 5251 Brochure US

Download PDF

Product Documentation

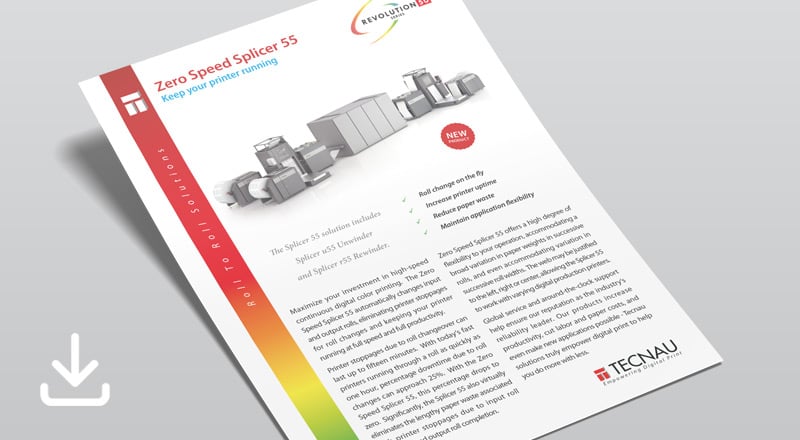

Splicer Roll 55 product brochure
