    Increase the Throughput of Your Kyocera TASKalfa Pro

    SheetFeeder KT: Unwinder, Cutter and Sheet Transport

Bring roll feed productivity and cost savings to your Kyocera TASKalfa Pro inkjet production printer. The SheetFeeder IJ roll feed system feeds single sheets on demand for an operator shift or more, increasing throughput while lowering downtime, operator involvement and paper costs.

Key Features

  • Reliable inline roll feeding

  • More Uptime

  • Lower paper costs

  • Any form size

Like adding a 50,000-sheet tray to the Kyocera TASKalfa Pro. Run for hours between loads, and purchase paper in rolls instead of sheets for savings of 20% or more.

Sheetfeeder KT

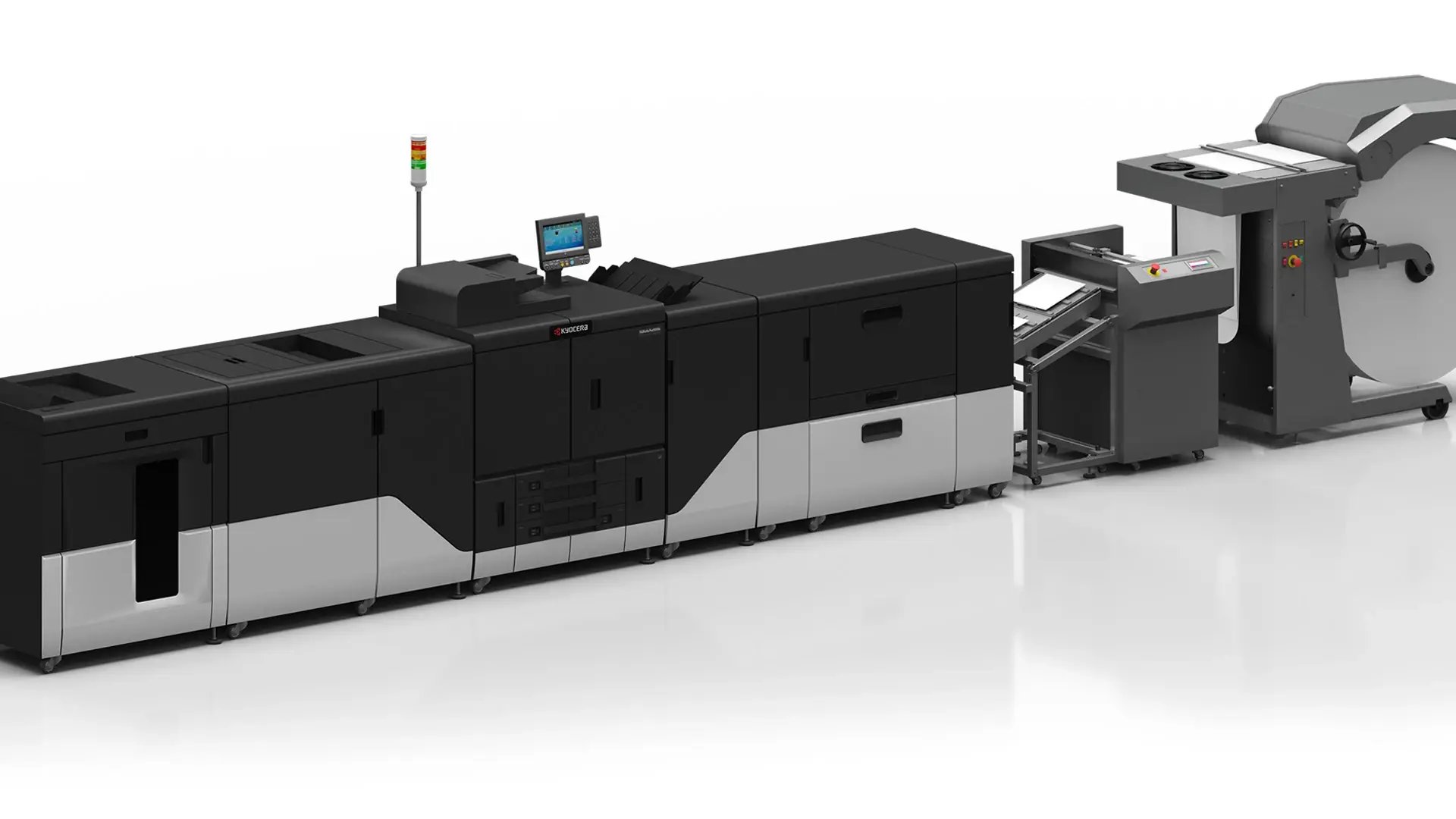

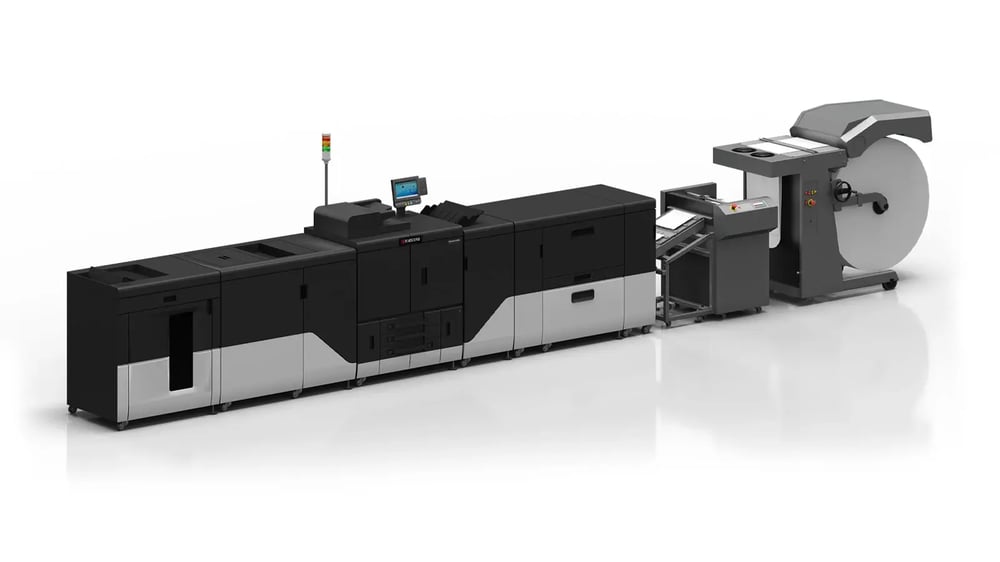

The SheetFeeder KT includes an unwinder, cutter and sheet transport, and sits to the right of the Kyocera TASKalfa Pro inkjet production printer.

The user-friendly unwinder includes automatic decurling, no-lift roll mounting and a self-centering design. Rolls up to 50” in diameter are loaded quickly and easily into the unwinder directly from an optional roll cart. The unwinder feeds a paper web to the SheetFeeder’s cutter, which then accurately produces consistent, square sheets for ondemand feeding. Form lengths are easily changed with the touch of a button.

The reliable sheet transport, with a patented single sheet feeding mechanism, feeds sheets into the right-most feeder module of the TASKalfa Pro on demand. All printer feed trays remain available for feeding other sheets. Because there is no buffer, there is virtually no waste when changing applications.

The flexible SheetFeeder KT allows both 8.5” x 11” and 11” x 17” applications to be run from the same 11” wide rolls or both A4 and A3 applications from the same 297 mm wide rolls. A SheetFeeder-equipped TASKalfa Pro may be easily switched on a job-by-job basis between roll and normal cut sheet operation.

All components use standard power, are mobile, modular, compact, and designed to dramatically improve work-flow.

SheetFeeder KT was developed by Tecnau in cooperation with Kyocera, and is marketed and sold in North America by Kyocera and its dealers. In the rest of the world, SheetFeeder KT is marketed and sold directly by Tecnau and our network of distributors.

Technical Specifications

Specifications
Paper weight 27# text – 80# cover, 40 – 220 gsm
Roll diameter 100 – 1270 mm ≈ 4" – 50"
Roll weight max. 680 kg ≈ 1500 lbs
Core size 70, 150, 200 mm ≈ 3", 5", 6"
Roll width 178 – 330 mm ≈ 7" – 13."
Sheet Size 178x178 – 330x488m ≈ 7”x7” – 13”x19.2”

Modular System Options

Hole Punch

Operator selectable in-line US 3-Hole or A4 2/4-Hole. Avoid changing stock, save money on paper, and reduce inventory. Other punch patterns are available.

Print Register

Run pre-printed forms from a roll.

Running Micro-Perforator

Perforate in process direction to create tear-off remittance slips or other special applications, for significant savings on special stocks.

Right-Hand and Left-Hand Infeeds

For space-planning flexibility.

Roll Carts

Move, store and load rolls with greater efficiency.

Product Documentation

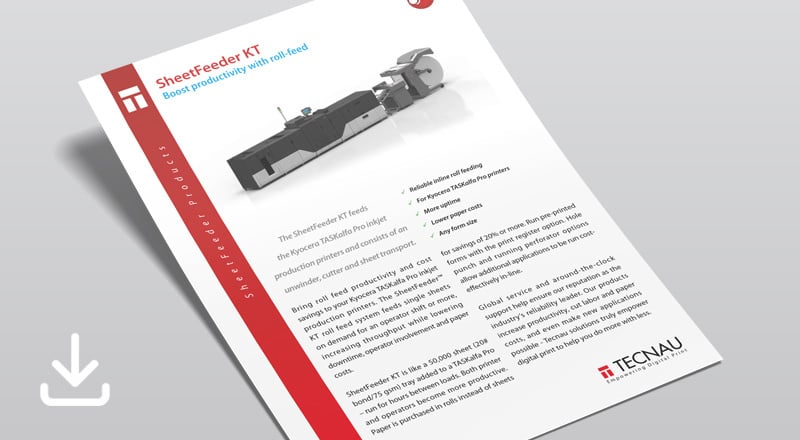

Sheetfeeder KT product brochure
